224 slot secure strong room and bay area layout

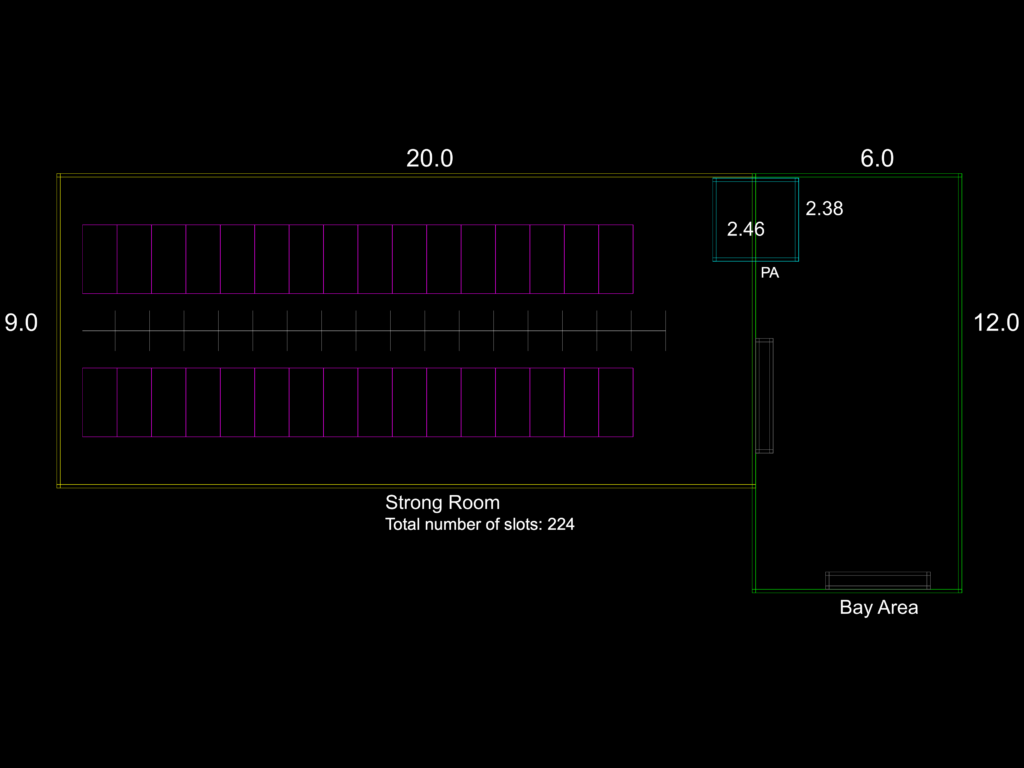

Vault room layout with 224 individual storage slots. Incl. a bay area for staging and a small PA station. Dimensions are Imperial, etc. 3D elements are included in the model space.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Concrete, Steel
Units
Imperial
Area
10 – 49 m² (107.6 – 527.4 ft²)
Uploaded by
CAD Workshop
Category
Commercial, Utilitarian Buildings
Published
Apr 26, 2026
Price $6.87
