2D Fire Sprinkler System Design Starter Pack

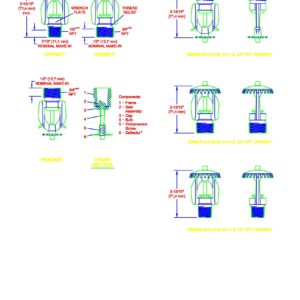

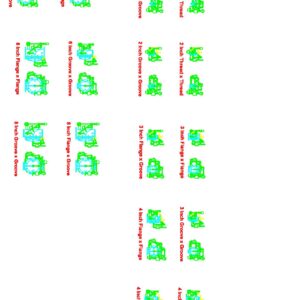

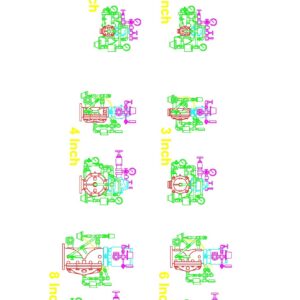

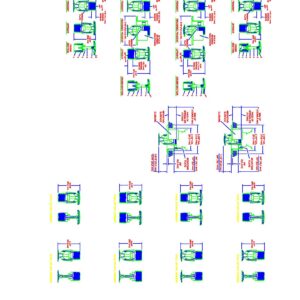

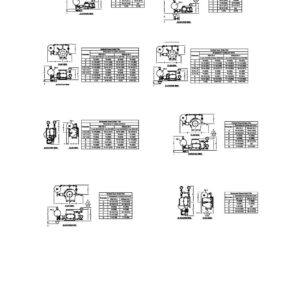

Fire Sprinkler System 2D Starter Pack with valve, sprinkler head details.
Everything you need to start. This will save you time and money with preformatted valves and details. The zip file contains 14 files with multiple blocks.
| Language | English |
| Drawing Type | Detail |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
          |
| File Type | dwg |
| Materials | Steel, Other, N/A |
| Measurement Units | N/A |
| Footprint Area | N/A |
| Building Features | |
| Tags | Fire Protection, Sprinkler Ssystem Heads Misc Hardware |
