2nd Basement Electrical Plan DWG

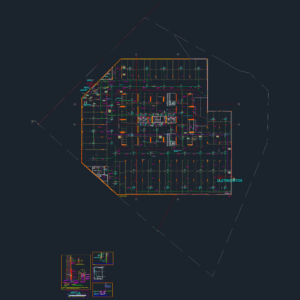

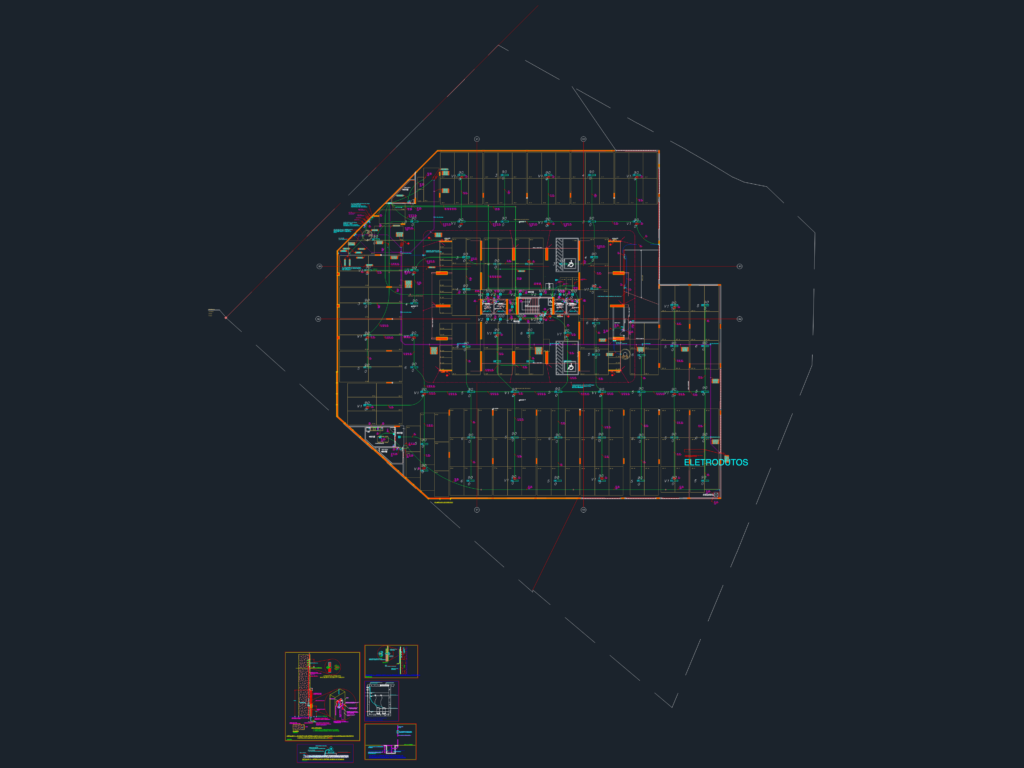

2nd basement electrical plan showing parking area conduit routes, lower reservoir, and grounding details.

Electrical layout for the 2nd basement and lower reservoir, includes conduit routes & grounding details etc

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
Portuguese
Materials
N/A
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Features
Parking, Elevator
Uploaded by
Rafiq
Category
Mechanical, Electrical & Plumbing (MEP)
Published
Apr 30, 2026
Price $6.50
