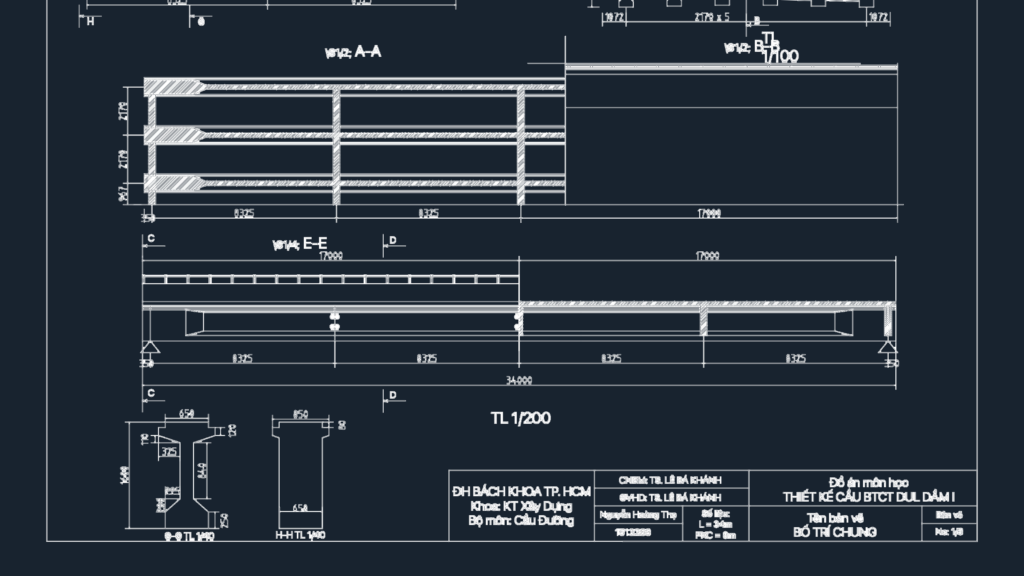

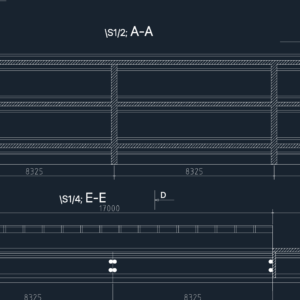

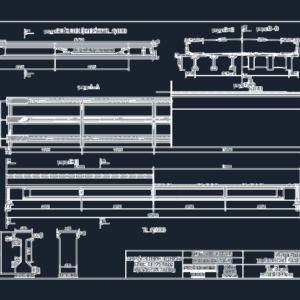

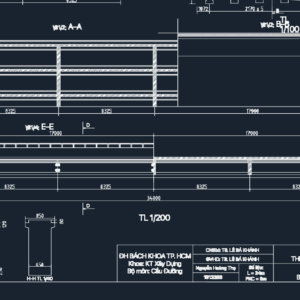

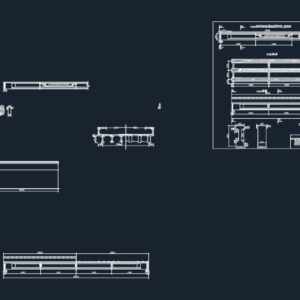

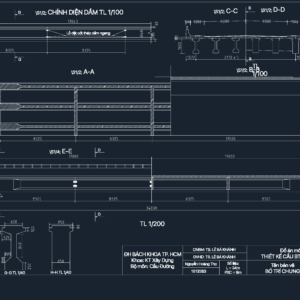

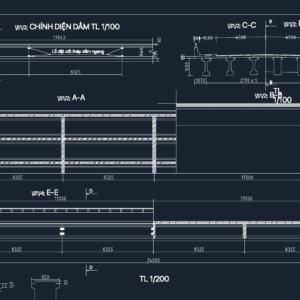

General layout for a 34m pre-stressed concrete I-beam bridge. Deck width is 9m. – Elevations at 1/100 and 1/200 – Beam cross-sections and reinforcement holes – Sections A-A through H-H included Handy DWG for road/bridge engineering projects. Bố trí chung cầu BTCT dầm I.
34m I-Beam Bridge DWG General Layout & Sections
