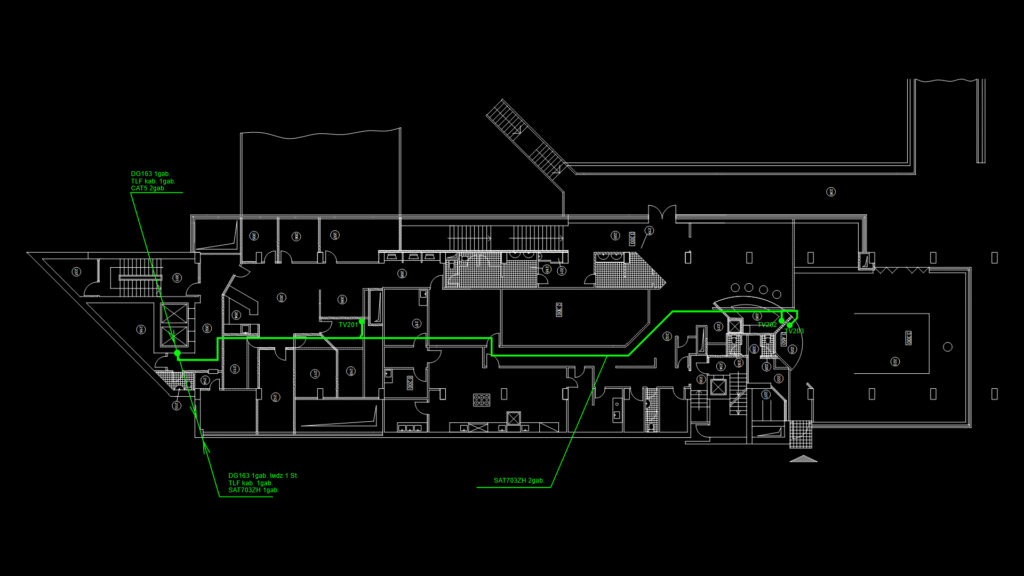

2D floor plan detailing the TV and telecommunications network installation for the second floor of a residential building in Jurmala, Latvia. The drawing illustrates cable pathways routed through suspended ceiling spaces to numbered TV outlets across several apartment units.
Technical specifications include SAT703ZH coaxial cables, CAT5 data cabling, and TLF telephone lines. The layout identifies DG163 equipment locations and shows the infrastructure relative to architectural features like tiled bathrooms, stairwells, and kitchen areas. All dimensions are in millimeters. TV tīkla un vājsprieguma kabeļu plāns.
