Access Gate DWG Detail for AutoCAD

Access Gate DWG Detail for AutoCAD

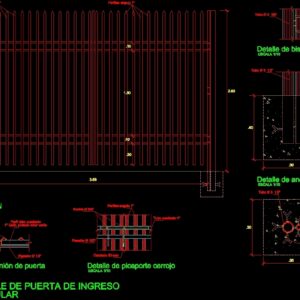

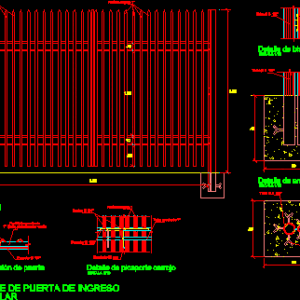

Details iron forged gate access cars

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

vehicular, entry door detail, elevation, door joint detail, square tube profile, latch detail latch, hinge detail, floor anchor detail, open stage, hinge

Raw text data extracted from CAD file:

.40 .30 .30 .30 .30 1.30 .10 .10 3.55 2.50 Perfiles angulo 1" VEHICULAR DETALLE DE PUERTA DE INGRESO ESCALA 1/25 ELEVACION ESCALA 1/10 Detalle de unión de puerta Perfil tubo cuadrado 1" lijado, pintado color verde Pasador d 1/2" ESCALA 1/10 Detalle de picaporte cerrojo Perfiles angulo 1" Tubo cuadrado 1" Bocina d 3/4" Pasador d 1/2" Candado 30 mm Detalle de bisagra ESCALA 1/10 Tubo d 1 1/2" Tubo d 3 1/2" Detalle de anclaje al piso ESCALA 1/10 Tubo d 3 1/2" Tubo d 1 1/2" .40 .30 Platina abierta .30 .30 Tubo d 3 1/2" Tubo d 1 1/2" Platina abierta Perfiles angulo 1" Perfiles angulo 1" Perfiles angulo 1" Bisagra .30 5 5 5 3.55 5

Language	Spanish
Drawing Type	Detail
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	access, autocad, cars, DETAIL, details, DWG, forged, gate, iron
