Aeolian Water Pump DWG Block for AutoCAD

Aeolian Water Pump DWG Block for AutoCAD

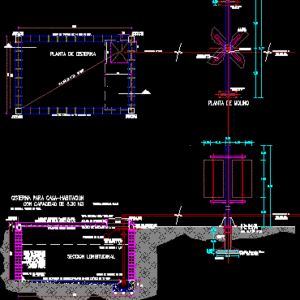

Aeolian Water Pump

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

wall of cms of esp., cms, wall of cms of esp., tank plant, armex castle, armex castle, armex castle, armex castle, cms simple concrete bottom slab, flattened interior polish, reinforced with armex mesh, concrete slab, with capacity of, tank for, armex, universal nut, coppermade, copper tube, mm check bronze, mm float valve, longitudinal section, rain catch, comes from the system of, globe float, height of sardinel, metal cap type, universal nut mm, chain with, wall of, mud of cms of, esp. settled with, mortar of, would flatten, interior with mortar, adjective fester, polished finish., mortar flange, from cms, armex, unscaled. dimensions in cms., chain with, mm copper tube, mill plant, elevated tank, cold water rises, mm copper tube, Steel plate, identification card, metallic structure, mount, tambo, chap. lts., tubular element, of subjection, blow bomb, poor concrete template, var. var. estr., raised, column arming, elevated tank, cold water rises, mm copper tube

Raw text data extracted from CAD file:

0.50 0.20 2.77 1.39 1.39 0.60 0.05 0.06 0.44 0.18 2.25 0.81 1.05 0.39 0.10 0.42 0.42 0.20 0.20 MURO DE TABIQUE DE 14 CMS DE ESP. P E N D I E N T E 10 CMS MURO DE TABIQUE DE 14 CMS DE ESP. PLANTA DE CISTERNA CASTILLO ARMEX 15-15-4 Fc=150 60 70 CASTILLO ARMEX 15-15-4 Fc=150 30 30 300 CASTILLO ARMEX 15-15-4 Fc=150 15-15-4 Fc=150 CASTILLO ARMEX 215 185 25 15 33 30 15 317 LOSA DE FONDO DE CONCRETO SIMPLE Fc=200 KG/CM2 DE 10 CMS APLANADO PULIDO INTERIOR REFORZADA CON MALLA ARMEX 6x6 6/6 LOSA DE CONCRETO Fc=200 KG/CM2 CON CAPACIDAD DE 5.30 M3 CISTERNA PARA CASA-HABITACION ARMEX 15-20-4 TUERCA UNIVERSAL DE COBRE 1 1/4" TUBO DE COBRE 1 1/4" CHECK DE BRONCE 25 MM VALVULA DE FLOTADOR DE 13 MM SECCION LONGITUDINAL 10 CAPTACION PLUVIAL VIENE DEL SISTEMA DE 60x60 FLOTADOR DE GLOBO ALTURA DE SARDINEL 10 TAPA METALICA TIPO "DIAMANTE" TUERCA UNIVERSAL 19 MM CADENA CON MURO DE TABIQUE DE BARRO DE 14 CMS DE ESP. ASENTADO CON MORTERO DE ALBANI- LERIA Y APLANADO INTERIOR CON MORTERO Y ADHITIVO FESTER ACABADO PULIDO. CHAFLAN DE MORTERO DE 7x7 CMS 150 ARMEX 15-20-4 20 10 SIN ESCALA. COTAS EN CMS. CADENA CON TUBO DE COBRE DE 19 MM PLANTA DE MOLINO A TANQUE ELEVADO SUBE AGUA FRIA TUBO DE COBRE DE 19 MM PLACA DE ACERO CEDULA 20 5 5 5 ESTRUCTURA METÁLICA MONTEN 4"X 4" 1/2 TAMBO CAP. 200 LTS. 5 5 ELEMENTO TUBULAR DE SUJECION 1 1/2"d BOMBA DE GOLPE F'C= 100 KG/CM2 Plantilla Concreto Pobre \A1;6 Var. No.4 \S1#2;"d 2 Var. No.3 \S3#8;"d Estr. No.3 \S1#4;"d @ 20 Alzado 5 5 5 5 5 Armado de Columna CO-01 A TANQUE ELEVADO SUBE AGUA FRIA TUBO DE COBRE DE 19 MM 5 5 5 5 5 5 5 5 5

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, bomba, bomba de água, DWG, pipe, pompe, pompe à eau, pump, pumpe, rohr, tubulação, tuyaux, wasserpumpe, water, water pump
