Aluminium Double Sliding Door DWG Block for AutoCAD

Aluminium Double Sliding Door DWG Block for AutoCAD

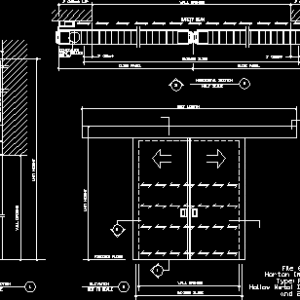

Aluminium Double sliding door

Drawing labels, details, and other text information extracted from the CAD file:

half scale, concealed, stay roller, below, unit height, honeycomb core, finished floor, concealed stay roller, wall opening, maximum slide, safety beam, horizontal section, unit length, not to scale, elevation, vertical section, horton, electric belt drive, operator, horton industrial series, type: p-x-x-p, hollow metal door with belt drive, slide panel, lap

Raw text data extracted from CAD file:

1" (25mm) 3 HALF SCALE 2 1 1" (25mm) CONCEALED STAY ROLLER BELOW 8" (203mm) 2 UNIT HEIGHT 1 HONEYCOMB CORE FINISHED FLOOR 3 CONCEALED STAY ROLLER 18 GA. STEEL SKIN WALL OPENING MAXIMUM SLIDE 120 VAC 4" (102mm) LAP SAFETY BEAM HORIZONTAL SECTION UNIT LENGTH 4" (102mm) LAP WALL OPENING MAXIMUM SLIDE 6" (152mm) NOT TO SCALE ELEVATION VERTICAL SECTION HALF SCALE WALL OPENING HORTON SERIES 2001 ELECTRIC BELT DRIVE OPERATOR UNIT HEIGHT File 6.115d1 Horton Industrial Series Type: P-X-X-P Hollow Metal Door with Belt Drive and 20 Track SLIDE PANEL 2" (52mm) LAP SLIDE PANEL

Language	English
Drawing Type	Block
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aluminium, autocad, block, door, double, DWG, sliding
