Anchor Bolt DWG Block for AutoCAD

Anchor Bolt DWG Block for AutoCAD

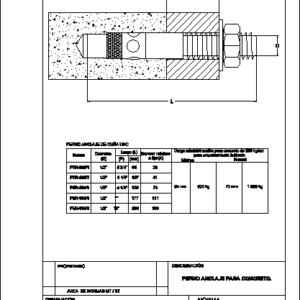

Anchor bolt

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

denomination, Format, drawing, approved, activity, revised, esc: no scale, first name, firm, observation, date, derivations, owner, area of norms mt bt, sheet of, rule, route:, bolt anchor for concrete., general layout, rule, diameter, long, maximum thickness, load administration for concrete for embedment indicated, minimum, normal, unc wedge anchor bolt

Raw text data extracted from CAD file:

A D L DENOMINACIÓN FORMATO : A4 DIBUJO APROBÓ ACTIVIDAD REVISÓ ESC: SIN ESCALA NOMBRE FIRMA OBSERVACIÓN FECHA DERIVACIONES PROPIETARIO AREA DE NORMAS MT / BT PER-005 LAMINA 1 DE 1 NORMA RUTA: PERNO ANCLAJE PARA CONCRETO. Disposición General Norma PER-005/1 PER-005/2 PER-005/3 PER-005/4 PER-005/5 Diametro (D) 1/2" 1/2" 1/2" 1/2" 1/2" Largo (L) (P) (mm) 3 3/4" 95 4 1/4" 5 1/2" 7" 10" 107 139 177 254 Espesor máximo a fijar(A) 29 41 73 111 188 Carga administracción para concreto de 280 kg/cm para empotramiento indicado Minimo Normal 54 mm 600 kg 70 mm 1.000 kg PERNO ANCLAJE DE CUÑA UNC

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	anchor, autocad, block, bolt, DWG, le tuyau, parafusos, pipe, robinet, rohr, schraub, screw, tubos, valve, válvulas, ventil, vis
