Apartment Interior Layout and Electrical Plans

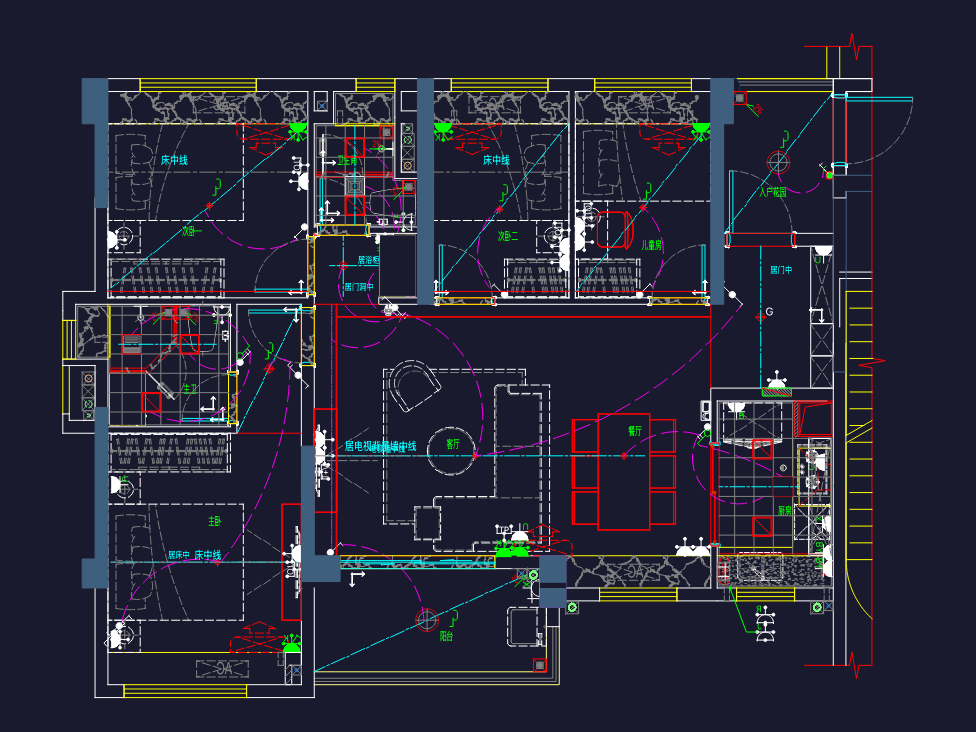

Interior layout for a residential apartment unit featuring floor plans, ceiling designs, and terminal point locations. Electrical sheets detail socket and lighting placement, noting AC outlet heights at 2400mm to accommodate curtain rods. Room layouts cover everything from the entrance garden to the master suite and secondary bedrooms. Structural data is also provided, listing feame beam (KL) and secondary beam (L) sizes such as 200x450mm and 200x1200mm. Brick masonry details specify 100mm vertical moldings. Construction notes specify seismic grade 3 for frame beams and a standard slab thickness of 100mm. door and window schedules like M0922 and TC1516 are included throughout the set. 包含16号楼A03户型的平面布置、天花布置及插座灯具定位图。
