APC NetShelter SX 24U Server Rack Enclosure AR3104 Elevations and Details

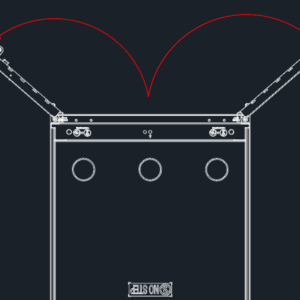

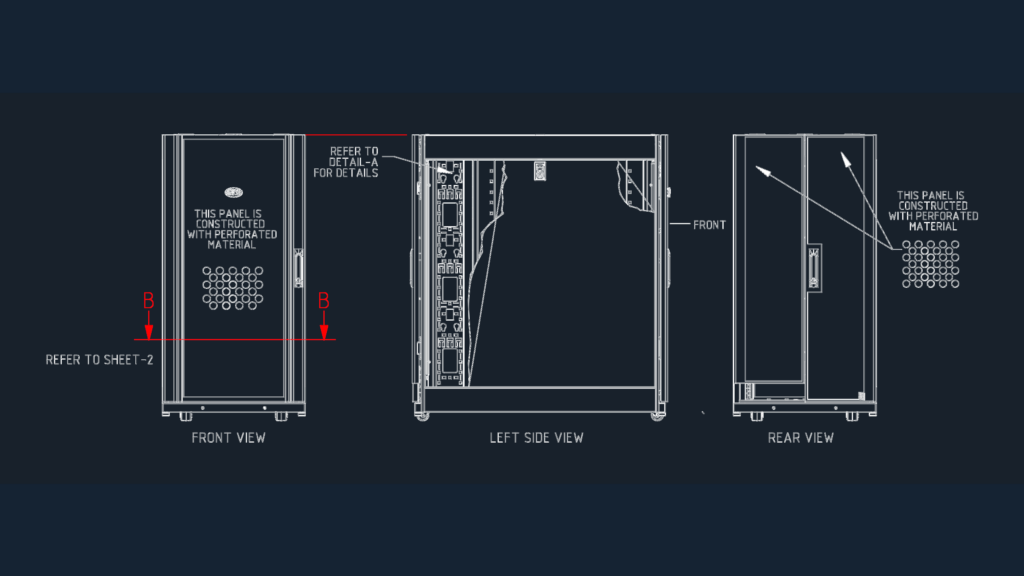

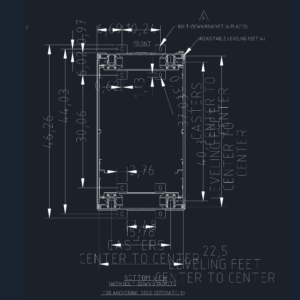

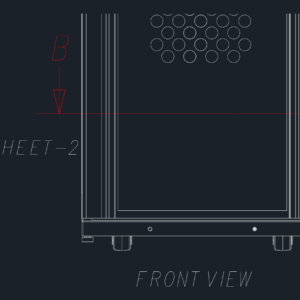

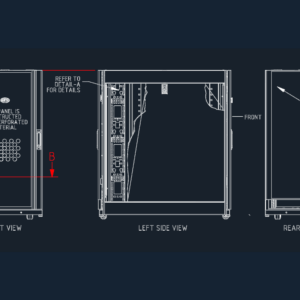

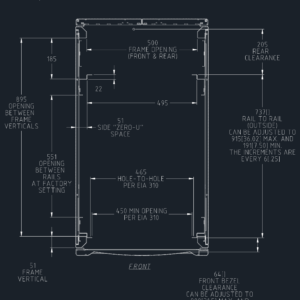

AR3104 NetShelter SX 24U Enclosure elevations and details. Front, rear, and side views show perforated paneling and RM PDU mounting configs. Includes top/bottom views for cable entry (100x61mm cutouts) and anchoring specs for levelung feet or bolt-down kits. Unit net weight is 89.09 kg (196 lbs).

PREMIUM

File Details

File Type
DWG
Type
Elevation
Language
English
Materials
Steel
Units
Imperial
Area
1 – 9 m² (10.8 – 96.9 ft²)
Uploaded by
Lina CAD
Category
Blocks & Models, Electronic Components & Devices
Published
Jun 3, 2026
Price $8.33
or

or get unlimited access from $7/mo

Browse All Downloads
