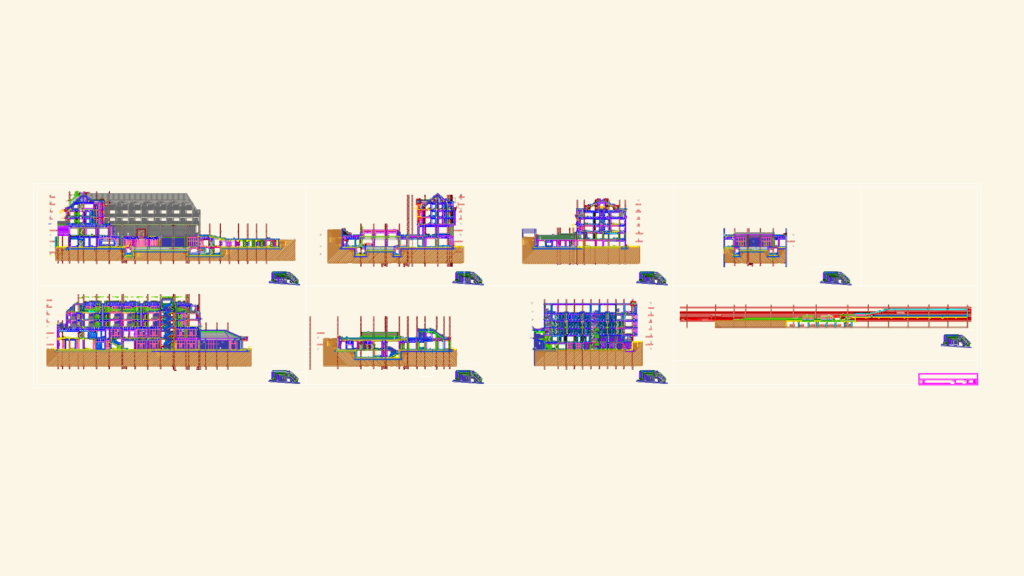

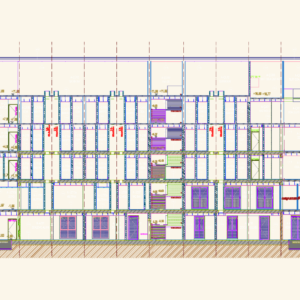

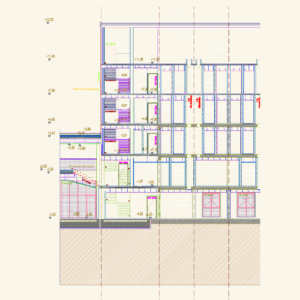

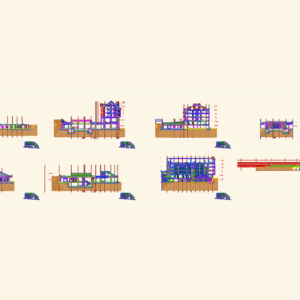

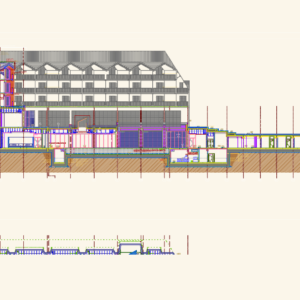

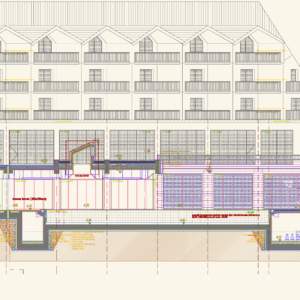

Cross-sections for a multi-level architectural project, looks like a hotel or social facility. Incl. Sections A-A through H-H at 1/100 scale showing the whole stack from the technical basement to the attic levels. We’ve the facade with basalt stone cladding and Thermowood ash panels. Roofing specs for standing seam aluminum over OSB and 120mm rockwool insulation are also in here. Floor heights are clearly marked for the Alt/Üst Zemin, 1st & 2nd floors, & technical rooms. 8+8mm tempered glass railings & solar low-e glazing details are noted on the elevations. Drainage pipes, foundation connections, & interior suite layouts are all mapped out.
Architectural Building Sections DWG CAD Set
