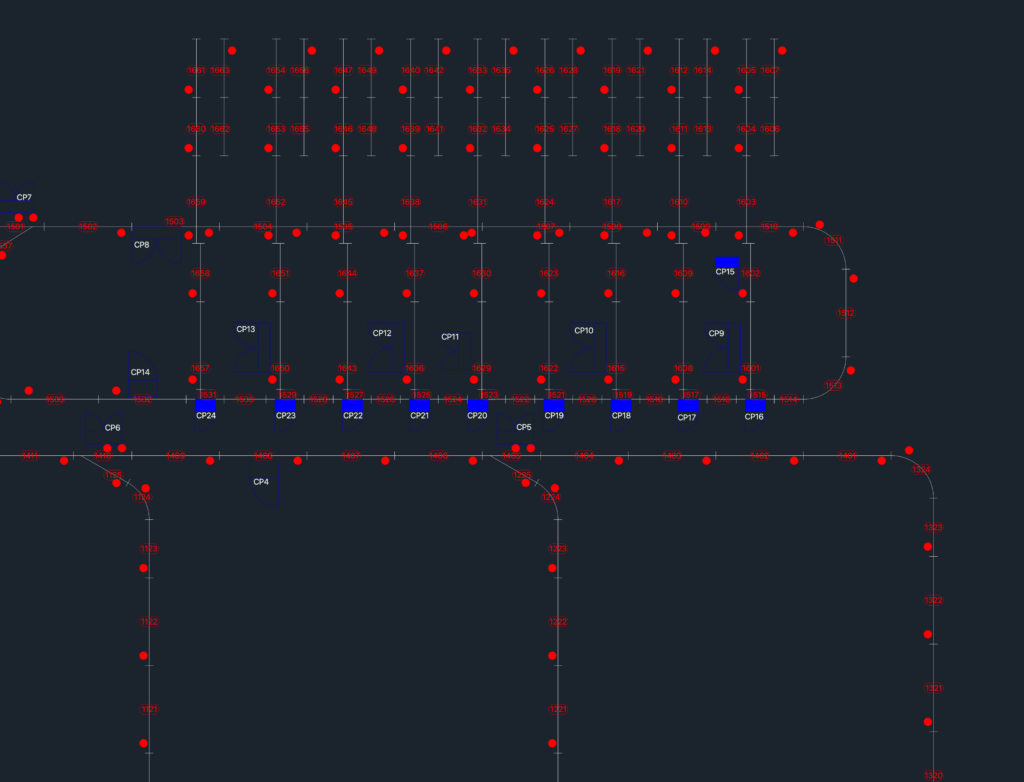

Layout for a big automated warehouse conveyor system or sorting line. Shows positions for motors, phooeyes (PE), and all the control points from CP1 through CP24. Incl. different modules like 90-degree turns, O-belt curves, and those miter merges. The whole thing’s in metric & covers a massive area, like 102m by 129m. Layers are set up for rack positions, conveyor names, IOT points, and more. Useful if you’re planning material handling systems or logistics automation. Includes some specific block sizes for the CPs like 500×300 and 1200×300. Just 2D geometry here, no 3D elements etc.
Automated Sorting Conveyor System Layout with Control Points
