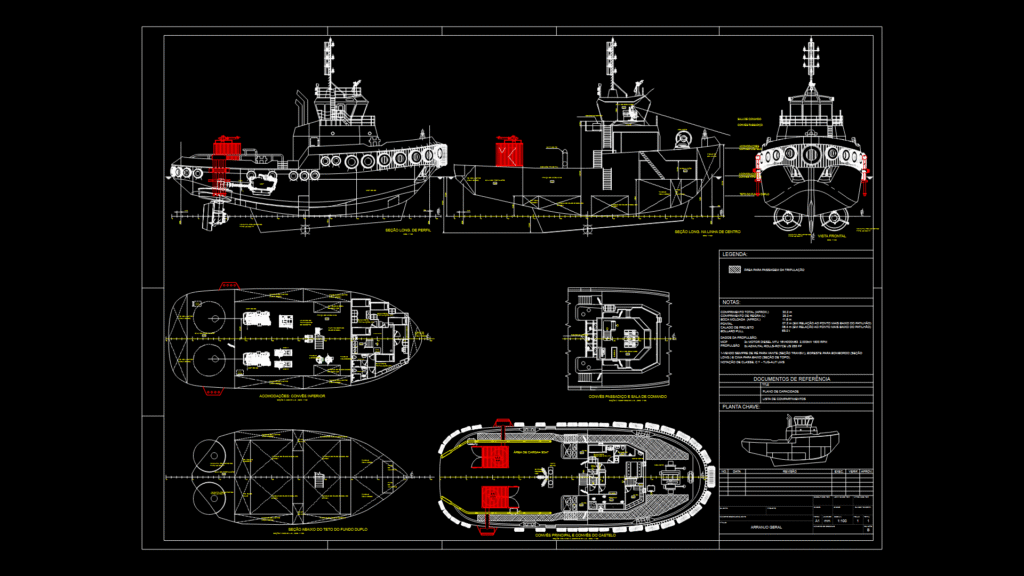

Complete general arrangement drawing of a 30.2m azimuth propulsion tugboat with 65-ton bollard pull capacity. The vessel features dual MTU 16V4000M63 diesel engines (2,000kW at 1800 RPM) coupled to Rolls-Royce US 255 FP azimuthal thrusters. Drawing includes plan views, sections, and elevations showing the command bridge, engine room, crew quarters, and machinery spaces. The tug has a molded beam of 11.6m, a draft of 6.4m, and a depth of 7.2m measured from the lowest point of the hull. Structural arrangements include specific compartments for propulsion room (102), engine room (101), and command center (491). The vessel is designed to AUT UMS class notation standards for maritime operations with unmanned machinery spaces. Deck layout includes mooring equipment, cargo area (90m²), and essential navigation systems including GMDSS equipment.
Azimuthal Tugboat General Arrangement Plan with 65t Bollard Pull
