Balcony Railing – Metal DWG Detail for AutoCAD

Balcony Railing – Metal DWG Detail for AutoCAD

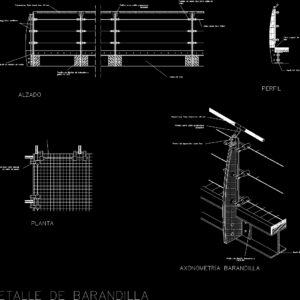

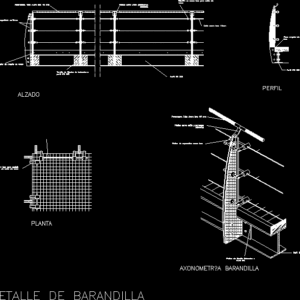

Detail rail balcony.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

curved rail balustrade handrail, stainless steel separation plate, profile, baluster fixing plate to ipe profile, axonometric handrail, stainless steel element for anchoring steel cable, plant, stainless steel fixing for steel cable, elevation, detail of handrail, angular part of auction in stainless steel

Raw text data extracted from CAD file:

Pletina curva unión pasamanos balaustre Pletina de separacion acero inox PERFIL Pletina de fijación Balaustre a Perfil IPE Perfil IPE 300 AXONOMETRÍA BARANDILLA Elemento de Acero Inox para anclaje de cable de acero PLANTA Doble vidrio de seguridad. e=16mm Pasamanos, Tubo Acero Inox 40 mm Cable acero inox 10mm Perfil IPE 300 Tornillo de fijacion de balaustre a perfil IPE 300 Fijación en acero inox para cable de acero ALZADO DETALLE DE BARANDILLA Pieza angular de remate en acero inox Pasamanos, Tubo Acero Inox 40 mm Perfil IPE 300 Pieza angular de remate en acero inox Pletina curva unión pasamanos balaustre

Language	Spanish
Drawing Type	Detail
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, balcony, balustrade, DETAIL, DWG, metal, rail, railing, terrace, terrasse, veranda
