Beam Of Strut And Machon DWG Detail for AutoCAD

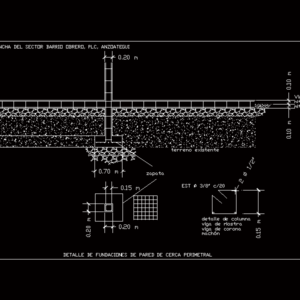

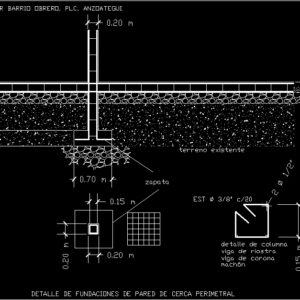

Constructive detail of brace beam and machon that supports perimetral brace in cyclon mesh of sportive court

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

beam beam, shallow half, half buried, shoe, existing land, column detail, beam beam, crown beam, macho, its T, detail of perimeter fence wall foundations, roof of the anzoategui neighborhood sector

Raw text data extracted from CAD file:

\A1;0.10 m \A1;0.10 m \A1;0.70 m \A1;0.30 m \A1;0.20 m \A1;0.20 m \A1;0.20 m \A1;0.15 m \A1;0.15 m \A1;2 d 1/2″ 5 5 Viga de riostra mitad superficial mitad enterrada 5 5 5 5 5 5 zapata terreno existente detalle de columna viga de riostra viga de corona machón 0.15 m 2 d 1/2″ EST d 3/8″ c/20 DETALLE DE FUNDACIONES DE PARED DE CERCA PERIMETRAL TECHADO DE CANCHA DEL SECTOR BARRIO OBRERO, PLC, ANZOATEGUI
