Berth DWG Block for AutoCAD

Berth DWG Block for AutoCAD

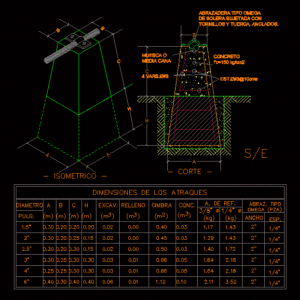

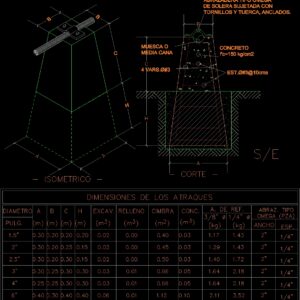

CONCRETE DOCK; FOR OTHER MEASURES

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

dimensions of berths, in., diameter, excavation, to. of ref., cramp, filling, conc., isometric, esp., width, cut, hug kind, middle notch cane, type omega of solera fastened with screws anchored., omega

Raw text data extracted from CAD file:

\A1;A \A1;H \A1;C \A1;B \A1;A \A1;A \A1;H \A1;C \A1;B \A1;B DIMENSIONES DE LOS ATRAQUES 3" 6" 4" 2" PULG. 2.5" 1.5" 0.03 0.06 0.03 (m ) 3 0.02 0.02 0.02 0.25 0.30 0.30 0.40 0.25 0.25 (m) 0.20 0.20 0.20 (m) 0.30 0.30 0.30 0.30 0.40 0.30 0.40 0.30 0.30 (m) 0.15 0.15 0.20 (m) 0.20 0.25 0.30 DIAMETRO B A H C EXCAV. 1/4" d 3/8" d 0.66 1.12 0.66 0.01 0.01 0.01 0.05 0.10 0.05 2.11 1.64 1.64 (m ) 0.50 0.45 0.40 (m ) 3 0.00 0.00 0.00 3 (m ) 0.03 0.03 0.03 2 (kg) 1.40 1.29 1.17 2.18 3.52 2.18 (kg) 1.72 1.43 1.43 A. DE REF. CIMBRA RELLENO CONC. A - ISOMETRICO - ESP. 1/4" 1/4" 2" 2" ANCHO - CORTE - ABRAZ. TIPO H C B MUESCA O MEDIA CANA \A1; 4 VARS.d#3 \A1;CONCRETO f'c=150 kg/cm2 \A1;ABRAZADERA TIPO OMEGA DE SOLERA SUJETADA CON TORNILLOS Y TUERCA, ANCLADOS. \A1;EST.d#3@10cms S/E A A H C B B OMEGA (PZA) 1/4" 1/4" 2" 2" 1/4" 1/4" 2" 2"

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, block, concrete, details of foundations, dock, DWG, footings, FOUNDATION, foundations, fundament, Measures, pilotines
