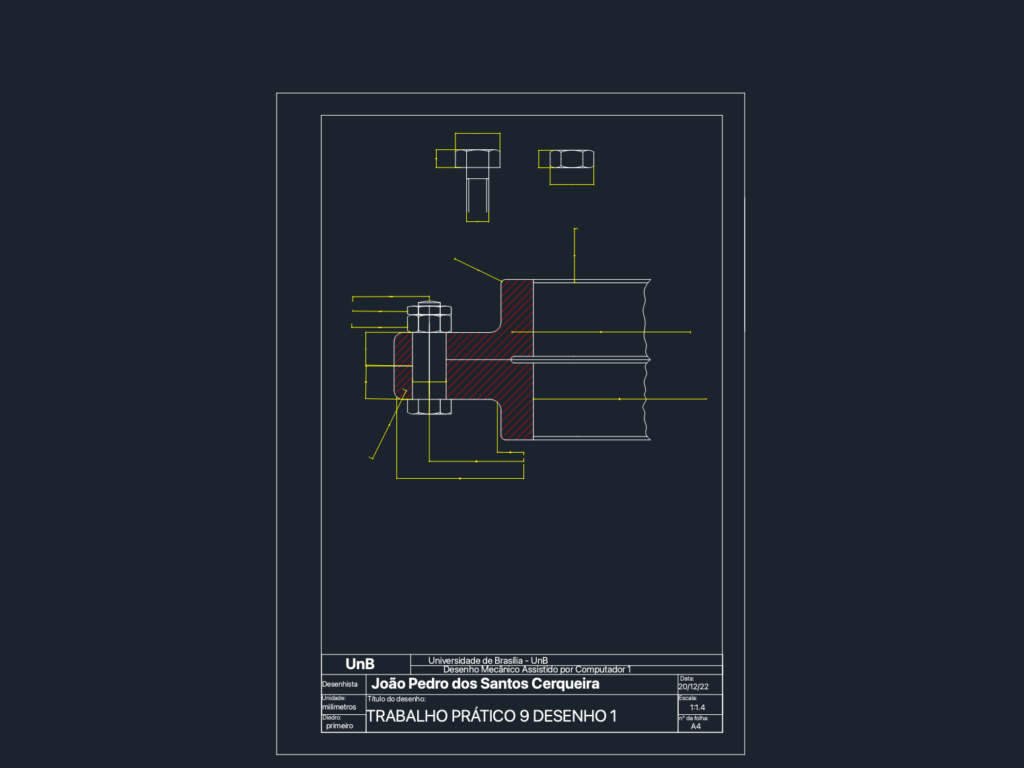

Bolted connection assembly showing a hex bolt with nut and jam nut arrangement. Features a cross-section of the joint with standard hatching. Separate views for the hex bolt head and shank, plus the nut in plan. Dims are in millimeters. Drawing uses first angle projection. From a mechanical design project at UnB.Trabalho prático de desenho mecânico mostrando montagem de parafuso e porca.
Bolted Connection Assembly Detail
