Book Case DWG Detail for AutoCAD

Book Case DWG Detail for AutoCAD

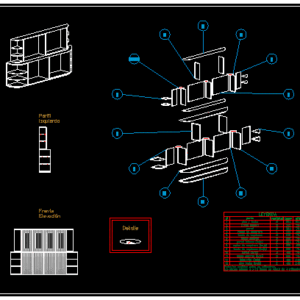

Book case – with wooden doors and glasses with marks – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

legend, part, quantity, base, high, m.m., inner wall, wall, corner shelf, corner background, shelf background, detail

Raw text data extracted from CAD file:

1 1 1 1 1 1 1 1 1 1 1 1 1 1 LEYENDA # parte cantidad base alto m.m. 1 piso / techo 2 254 2148 18 2 pared interna 2 242 784 18 3 pared 3 254 784 25 4 repisa de esquinero 4 233 233 18 5 fondo de esquinero 2 236 784 18 6 fondo estante 2 808 784 12 7 pared interna (bajo) 2 394 784 18 8 repisa de esquinero (bajo) 4 385 385 18 9 fondo de esquinero (bajo) 2 388 784 18 10 pared (bajo) 3 406 784 25 11 fondo estante (bajo) 2 808 784 12 12 falso piso (bajo) 1 406 2452 25 13 piso techo (bajo) 2 406 2452 18 Todas las medidas estan en milimetros. Las piezas número 3 y 10 tienen un rebaje de 4 milimetros 1 7 1 12 4 10 5 3 13 6 2 8 9 11 \c3173276;Frente Elevación \c3173276;Perfil Izquierdo detalle \c3173276;Detalle

Language	Spanish
Drawing Type	Detail
Category	Furniture & Appliances
Additional Screenshots
File Type	dwg
Materials	Glass, Wood, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, case, cupboard, DETAIL, details, doors, DWG, furniture, glasses, marks, meubles, möbel, móveis, schrank, shelf, shelves, wooden
