Building Fire Fighting System DWG Block for AutoCAD

Building Fire Fighting System DWG Block for AutoCAD

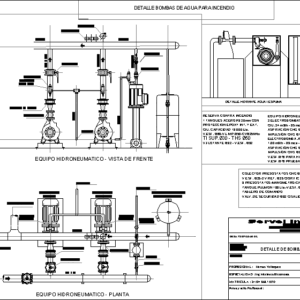

SCHEMATIC OF INSTALLATIONS AGAINST FIRE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Signature professional seal:, Specialty mechanic electrician, enrollment, Professional: hernan velázquez, Obs:, Property owned by:, Signature stamp principal:, Servel engineering, Mail to: web site: www.servelingenieria.com.ar, Specialist engineering study, Of survey designation designation:, Location, date:, scale:, tea.:, Detail hydrant water foam, Hydropneumatic system sist., Electric centrifugal pumps, Mca kw, Aspiration chg, Chg drive, Electric pump jockey, Mca kw, Aspiration chg, Chg drive, Valv. Safety sight, For hydrants, Tanks, Pressure gauge manifold chg, V.esf. V.ret. Mm, V.esf., Lung tank, command board, Fire reserve, Steel tanks with, Capacity lts., V.esf., V.flotante v.esf., Epoxy protection int. Ext., You ths, Bi-ejector, Foam tank af, Of lts. Dosed at, Hoses throw, sewer system, V. retention, Pressure switches, pressure gauge, relief, valve, V. butterfly, shock absorber, Ac, Acdd, reduction, V. retention, V. Spherical, Hydropneumatic equipment front view, Acdd, Ac, Ac, From tank, Electric pump, principal, high school, Electric pump, V. lock, Jta. Antivibrat., Liter capacity, hydropneumatic tank, V. Spherical, filter, Hydropneumatic plant, Detail fire water pumps, Plant esc., Scheme without scale, Fire hydrant, Butterfly valve, tank, discharge, relief, valve, relief, valve, discharge, relief, valve, Detail of fire pumps

Raw text data extracted from CAD file:

Firma y sello Profesional: ESPECIALIDAD : Ing Mecánico Electricista MATRICULA : 24.504.868 / 5030 PROFESIONAL: Hernan Velázquez OBS: OBRA PROPIEDAD DE: Firma y sello Comitente: Servel Ingeniería T.E.: 0351-155482765 - Mail to: servelingenieria@gmail.com Web Site: www.servelingenieria.com.ar Estudio de Ingeniería Especialista N° DE PLANO RELEVAMIENTO DESIGNACION: UBICACION FECHA: ESCALA: T.E.: 0351-155482765 \A1; DETALLE HIDRANTE AGUA / ESPUMA EQUIPO HIDRONEUMATICO SIST. C/INCENDIO 2 ELECTROBOMBAS CENTRIFUGAS HORIZONTALES C/U: 24 m3/h - 85 mca - 15 Kw ASPIRACIÓN CHG d76-V.E. d76 IMPULSIÓN CHG d76-V.E. d76-V.RET.d76-J.E.d76 ELECTROBOMBA JOCKEY 1.00 m3/h - 89 mca - 1,50 Kw ASPIRACIÓN CHG d38-V.E. d38-FILTRO "Y" IMPULSIÓN CHG d38-V.E. d38-V.RET.d38-J.E.d38 VALV. DE SEGURIDAD d32 C/SALIDA A LA VISTA V.ESF.d76 PARA HIDRANTES V.ESF.d76 PRUEBA-RETORNO A TANQUES COLECTOR PRESOSTATOS CHG d25 V.ESF. d25-2 V.RET. d25 C/ORIFICIO DE 2 mm 3 PRESOSTATOS-MANOMETRO-C/U: V.ESF. d13 TANQUE PULMON 100 Lts.-V.ESF. d25 TABLERO DE COMANDO RESERVA CONTRA INCENDIO 1 TANQUES ACERO #3.20mm CON C/U: CAPACIDAD 18.000 Lts. V.ESF. d63-V.LIMP.d50-CVd25Mfbr V.FLOTANTE d32 - V.ESF. d32 PROTECCION EPOXY INT. Y EXT. TI SUP.d30 - THS d50 B CH d63 BI d45 + EYECTOR TANQUE ESPUMA AF DE 200 Lts. DOSIFICADOS AL 3% MANGUERAS Y LANZA DRENAJE V. RETENCIÓN PRESOSTATOS MANOMETRO ALIVIO d3/4" VÁLVULA DE V. MARIPOSA AMORTIGUADOR ACº d 4" ACºd 2 1/2" ACºd1 1/2" REDUCCIÓN d2 1/2"-2" V. RETENCIÓN V. ESFERICA EQUIPO HIDRONEUMATICO - VISTA DE FRENTE ACºd 2 1/2" ACº d 4" ACºd1" ACºd1" ACº d 4" ACº d 4" DESDE CISTERNA ELECTROBOMBA PRINCIPAL SECUNDARIA ELECTROBOMBA V. ESCLUSA d3" JTA. ANTIVIBRAT. CAPACIDAD 100 LITROS TANQUE HIDRONEUMATICO REDUC.2 1/2"-3" V. ESFERICA FILTRO Y EQUIPO HIDRONEUMATICO - PLANTA DETALLE BOMBAS DE AGUA PARA INCENDIO PLANTA ESC. 1:250 ESQUEMA SIN ESCALA a Red Hidrantes d2 1/2" VALVULA MARIPOSA A TANQUE DESCARGA ALIVIO d3/4" VÁLVULA DE ALIVIO d3/4" VÁLVULA DE DESCARGA ALIVIO d3/4" VÁLVULA DE DETALLE DE BOMBAS DE INCENDIO

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, bombeiro, building, d'incendie, DWG, feuerwehrmann, fighting, fire, firefighter, hidrantes instalação, hydrant, hydranten, incendio, installation feuer, installations, installing fire, kläranlage, le feu d'installer, pompier, schematic, system, treatment plant
