Chapel Structural Details DWG

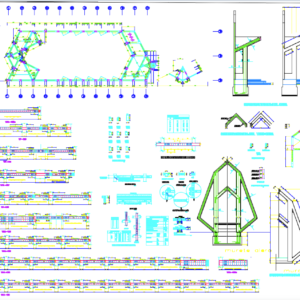

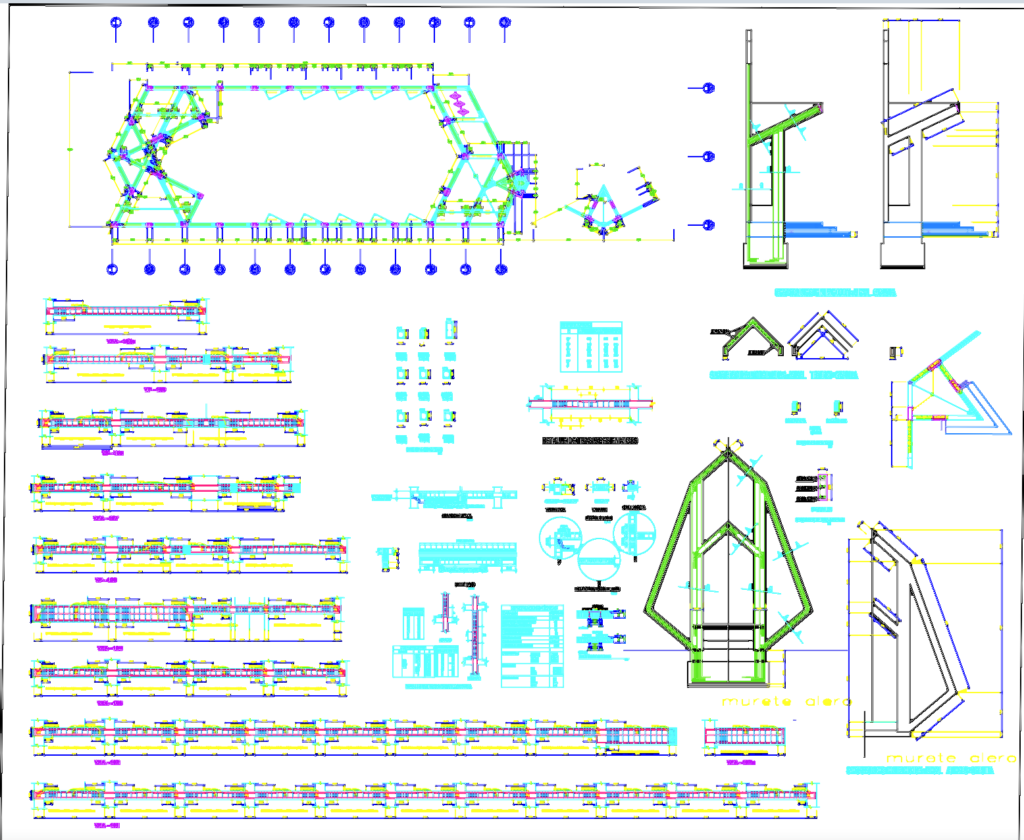

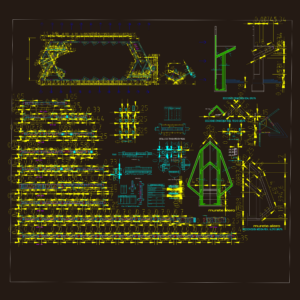

Structural CAD drawing showing beam sections, column reinforcement details, and technical specifications for a chapel.

structural details for a chapel. beam sections, column overlaps, slab details, the usual tech specs (Spanish).

FREE

File Details

File Type
DWG
Type
Detail
Language
Spanish
Materials
Concrete, Steel
Units
Metric
Uploaded by
Eng_Plans
Downloads
3 downloads
Category
Construction Details & Systems, Engineering & Technical
Published
Aug 12, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

beam sections house Chapel column details construction details DWG reinforced concrete Slab Details spanish structural details tech specs
