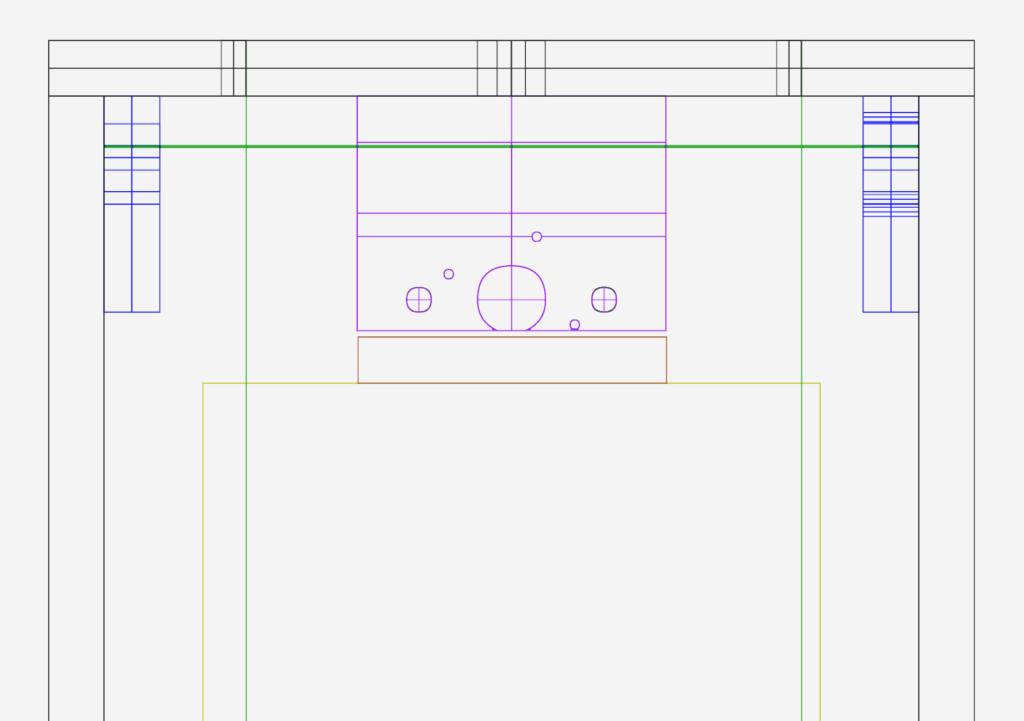

CNC machine frame layout for a DIY build, based on the ProfeGarcia design. It’s got the main bed (cama) and carriage details with hole placements for the head assembly. I’ve included the basic footprint, measuring roughly 311mm x 347mm. All dimensions are metric. Works for AutoCAD 2004 or anything newer. Mostly splines and lines on separate layers like Caja and Cama. Good starting point if you’re building a desktop router or engraver. Just the 2D plan here, no 3D stuff
CNC Machine Bed and Frame Plan DWG
