Column DWG Detail for AutoCAD

Column DWG Detail for AutoCAD

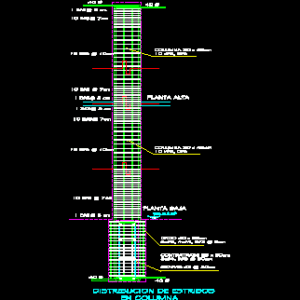

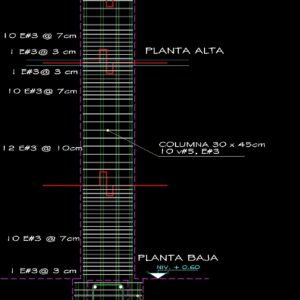

Detail anchorage concret column to shoe of foundation move

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Distribution of stirrups, Staples, Contratrabe, In column, dice, Niv, low level, column, column, top floor

Raw text data extracted from CAD file:

\A1; DISTRIBUCION DE ESTRIBOS GRAPAS #3 @ 30cm CONTRATRABE 25 x 90cm 8v#4, E#3 @ 30cm 8v#3, 4v#4, E#3 @ 9cm EN COLUMNA 40 d 40 d DADO 40 x 55cm 1 E#3@ 3 cm 10 E#3 @ 7cm NIV. + 0.60 PLANTA BAJA 1 E#3@ 3 cm 10 E#3@ 7cm 12 E#3 @ 10cm 10 E#3 @ 7cm 12 E#3 @ 10cm COLUMNA 30 x 45cm E#3 10 v#5, COLUMNA 30 x 45cm 1 E#3@ 3 cm 1 E#3@ 3 cm 10 E#3@ 7cm PLANTA ALTA 40 d 10 v#5, E#3 40 d

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	anchorage, autocad, base, column, concret, DETAIL, DWG, FOUNDATION, foundations, fundament, move, shoe
