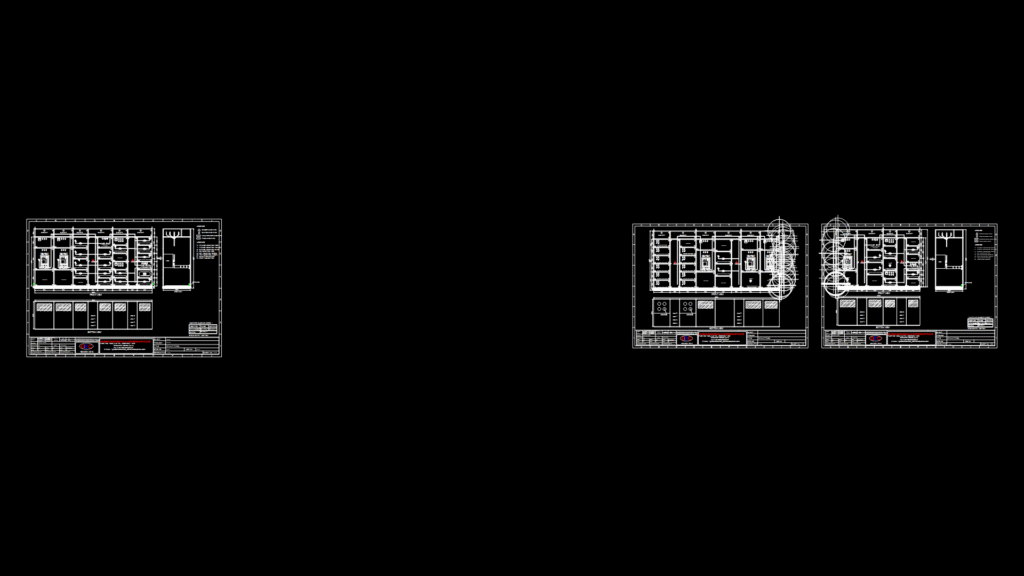

This comprehensive electrical panel drawing depicts a multi-section floor-mounted distribution system for a commercial retail facility. The design features main incomer ACBs (Air Circuit Breakers) rated at 1250A/50kA and 1000A/50kA, with bus coupler configurations for load management. The panel incorporates multiple distribution sections with aluminum busbars (80×10mm main runs) feeding numerous MCCB (Molded Case Circuit Breaker) outgoing circuits ranging from 100A to 800A. Notable elements include power factor correction capacitor banks (10-100kVAR), digital multifunction meters, phase indicators, and control circuitry for automated operation. Cable entry is specified from bottom/top depending on section, with dedicated gland, overall, plates for termination. The panel is designed per IP54 standards with proper ventilation hoods and accessibility features for maintenance. Panel dimensions vary by section with the main assembly measuring approximately 19700×2175×1300mm (L×H×D).
Commercial Electrical Distribution Panel Layout with ACB & MCCB Integration
