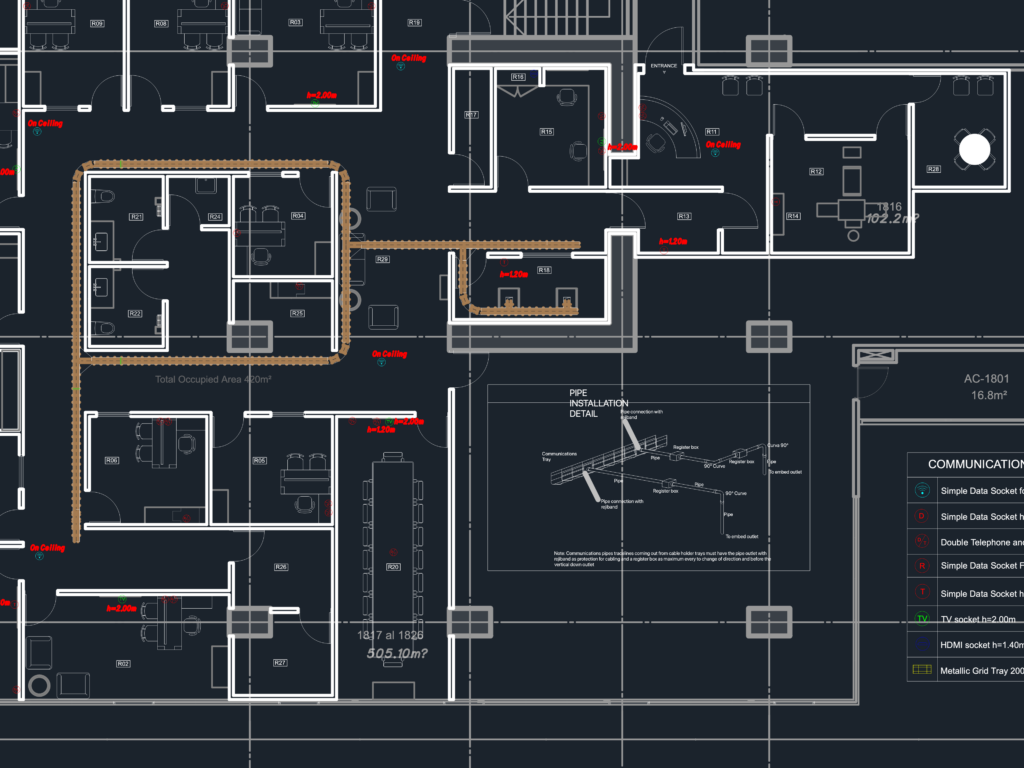

Communication layout for a 420m² office floor plan. Shows locations for data sockets, HDMI, and TV points along with the metallic grid tray routing & a specific pipe installation detail for cable transitions. Drawn for an embassy project, so it’s pretty thorough.
Communications Installation Plan for Temporary Embassy Offices
