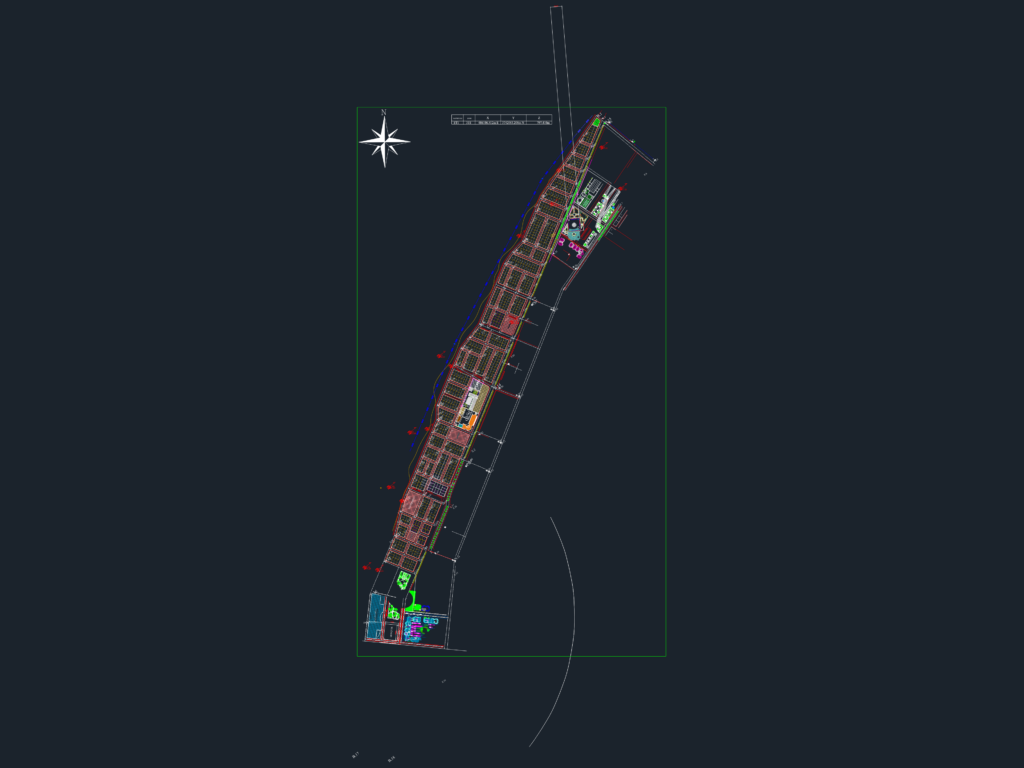

Site layout for a large development area incl. residential lots & public facilities. You’ve got an “Ecole Primaire” (primary school) and a “C.E.M” (middle school) block with pedagogical and admin sections. theres also a mosque with a central courtyard and a designated parking zone. It maps out the pipe networks (PEHD 63, 90, 110) with lengths and slopes for the gas and water lines. Overall site plan includes roads (VOIE), sidewalks (TROTOIRE), and green spaces. Coordinates and levels are provided in metric.
Comprehensive site layout with mosque, school, and utility networks
