Concrete Retaining Wall DWG Detail for AutoCAD

Concrete Retaining Wall DWG Detail for AutoCAD

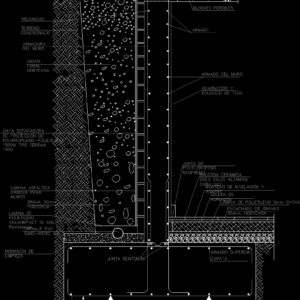

Concrete retaining wall detail to perfection

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

top fixing bracket screwed fastening, lower armrest zapata, cleaning concrete, compacted base, support blocks, upper armored, shoe, armed of the wall, hobbies, drainage pvc s.a, hobycasa gravel slab, concrete screed, polyethylene sheet, ceramic tile gres altamira cane, polychloropene gasket. neoprene, gypsum plaster, harmful asphalt sheet for walls, wall armor, cohesive ground, round, lost blocks, armed, hobbies, leveling mortar grip, armed, single-glazed stoneware type klinker ferrogres, grass, seal bentonite, cleaning concrete, rock wool non-organic non-combustible rockwool, terram type protective separator layer, chovaimpact polyethylene sheet high strength

Raw text data extracted from CAD file:

ESCUADRA DE FIJACIÓN SUPERIOR + FIJACIÓN ATORNILLADA ARMADO INFERIOR ZAPATA HORMIGÓN DE LIMPIEZA BASE COMPACTADA CALZOS DE APOYO ARMADO SUPERIOR ZAPATA ARMADO DEL MURO GRAVA 30mm. HOBYCASA DRENAJE PVC SANE-RIEGO S.A ENCACHADO DE GRAVAS 30mm. HOBYCASA SOLERA DE HORMIGÓN LÁMINA DE POLIETILENO 5mm CHOVA BALDOSA CERÁMICA GRES 25x25 ALTAMIRA CAÑA G37 JUNTA DE POLICLOROPENO. NEOPRENO GUARNECIDO Y ENLUCIDO DE YESO LÁMINA ASFÁLTICA DANOSA PARA MUROS ARMADURA DEL MURO TERRENO COHESIONADO REDONDOS BLOQUES PERDIDOS ARMADO GRAVA 10mm. HOBYCASA MORTERO DE NIVELACIÓN Y AGARRE ARMADO SOLADO DE GRES TIPO KLINKER FERROGRES CÉSPED JUNTA BENTONITA HORMIGÓN DE LIMPIEZA LANA DE ROCA MINERAL ROCKWOOL NO ORGÁNICO E INCOMBUSTIBLE CAPA SEPARADORA DE PROTECCIÓN DE POLIPROPILENO-POLIETILENO 1500N TIPO TERRAM 1000 LAMINA DE POLIETILENO ChovAIMPACT 10 Alta Resistencia

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, betonsteine, concrete, concrete block, constructive, DETAIL, DWG, retaining, wall, wall containment, walls
