Constructive Detail DWG Detail for AutoCAD

Constructive Detail DWG Detail for AutoCAD

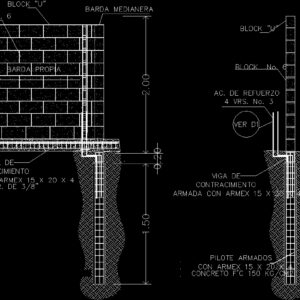

Thatches foundation piles

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

block no., block, block no., beam of, contraction, armed with armex, armed piles, with armex, concrete f’c, block, vrs. do not., party wall, ac. reinforcement, see, own fence, beam of, contraction, armed with armex, vr. from

Raw text data extracted from CAD file:

1.50 0.20 2.00 1.50 0.20 2.00 BLOCK No. 6 BLOCK "U" BLOCK No. 6 VIGA DE CONTRACIMIENTO ARMADA CON ARMEX 15 X 30 X 4 PILOTE ARMADOS CON ARMEX 15 X 20 X 4 CONCRETO F'C 150 KG/CM2 1.50 0.20 2.00 BLOCK "U" 4 VRS. No. 3 BARDA MEDIANERA AC. DE REFUERZO VER D1 1.50 0.20 2.00 BARDA PROPIA VIGA DE CONTRACIMIENTO ARMADA CON ARMEX 15 X 20 X 4 Y 1 VR. DE 3/8"

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, constructive, DETAIL, DWG, FOUNDATION, foundations, fundament, piles
