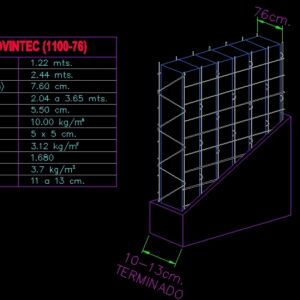

Structural panel Covintec ( 1100-76)

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

finished, width, high standard, thickness between, request heights, polystyrene thickness, plot of the, amount of steel, welding points, weight without stucco, finished wall thickness, structural panel covintec, mts., cm., mts., cm., cm., polystyrene density

Raw text data extracted from CAD file:

-6.545707210229352 -6.545707210229352 76cm. -6.545707210229352 \A1;10-13cm. TERMINADO \A1;5cm. \A1;5cm. Ancho Alto standard Espesor (Separación entre mallas) Alturas a pedido Espesor poliestireno Trama de la malla(Alto x Largo) Cuantía de acero Puntos de soldadura x m Peso sin estuco Espesor muro terminado 2 PANEL ESTRUCTURAL COVINTEC (1100-76) 1.22 mts. 2.44 mts. 7.60 cm. 2.04 a 3.65 mts. 5.50 cm. 5 x 5 cm. 3.12 kg/m 1.680 3.7 kg/m 11 a 13 cm. Densidad poliestireno 10.00 kg/m 2 3 2
