Curtain Wall Detail DWG Detail for AutoCAD

Curtain Wall Detail DWG Detail for AutoCAD

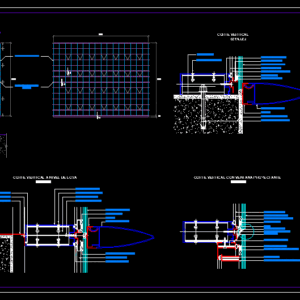

Types of anchor installation profiles for curtain wall decorative detail horizontal with a modulation scheme. This kind of detail buildings were used for large spans such as municipalities, swimming pools, theaters, schools, administrative centers, departments, etc.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

August, sheet :, scale :, date :, specialty :, description :, details of the curtain wall, architecture, architect, observations, owner :, professionals :, project :, bach. architect, vertical cut, structural silicone, vertical cut at slab level, wedge, silicone seal, vertical cut with projecting window, aluminum anchor

Raw text data extracted from CAD file:

15.22 3.25 .25 .25 3.25 .25 3.25 .25 3.25 .25 3.25 .25 15.22 19.82 .25 2012 AGOSTO 1 : 10 LAMINA: D-01 ESCALA: FECHA: ESPECIALIDAD: DESCRIPCION: DETALLES DE MURO CORTINA ARQUITECTURA ARQUITECTO OBSERVACIONES PROPIETARIO: PROFESIONALES: PROYECTO: BACH. ARQUITECTO 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Cristal TEMPLEX de 8 mm. \W2.48585; Perfil decorativo horizontal \W7.88983; ALN 1644 5 1 CORTE VERTICAL DETALLE 2 Cinta de doble contacto 1/4 x 3/8 Silicona estructural Vinil de contacto DC - 143 423102 Marco del panel Cristal TEMPLEX de 8 mm. Autorroscante PAN de 8 x 1/2" Angulo de sujeción 041119 Autorroscante FLAT de 8 x 1" 423101 Mullion horizontal Autorroscante PAN de 8 x 3/8" 423109 Remate clip 423108 Remate Perfil decorativo ALN 1644 Perfil 1645 CORTE VERTICAL A NIVEL DE LOSA DETALLE 1 3 423102 Marco del Panel Cristal TEMPLEX de 8 mm. Cinta de doble contacto 1/4 x 3/8 Silicona estructural CALZO 423103 Clip de sujeción Junta de retención de 12 mm. Sello de silicona Angulo de sujeción 041119 Vinil de contacto DC - 143 4230080 Marco de ventana proyectante 323609 Escuadra 423007 Contramarco de ventana proyectante CORTE VERTICAL CON VENTANA PROYECTANTE DETALLE 3 2 423101 Mullion vertical Cristal TEMPLEX de 8 mm. Cinta de doble contacto 1/4 x 3/8 Silicona estructural 423102 Marco del panel Junta de retención de 12 mm. Perno de expansión 3/8" x 3 3/4" Anclaje de aluminio Autorroscante PAN 10 x 3/4" 423103 Clip de sujeción Autorroscante PAN de 8 x 1" Perfil decorativo ALN 1644 Perfil 1645

Language	Spanish
Drawing Type	Detail
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Aluminum, Other
Measurement Units	Metric
Footprint Area
Building Features	Pool
Tags	anchor, autocad, curtain, decorative, DETAIL, DWG, horizontal, installation, modulation, profiles, types, wall
