DBGCM B&F 105 Aeration Tank Diffuser Layout

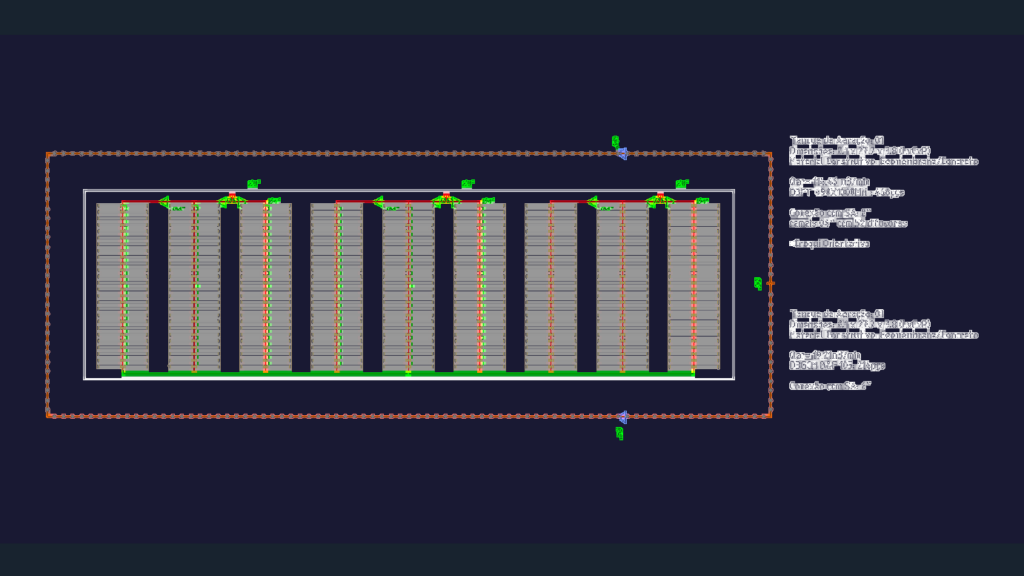

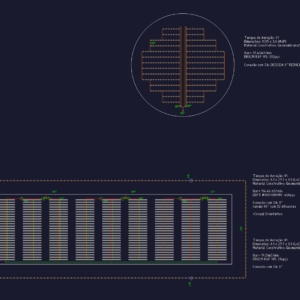

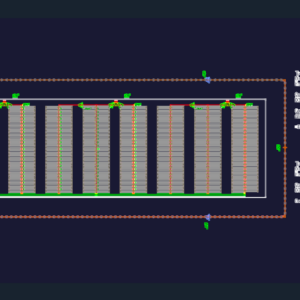

CAD layout of aeration tanks showing diffuser grids, piping connections, and technical flow specifications.

Aeration tank orientation sketches. we’ve got layouts for DBGCM B&F 105 and DBFT diffusers, incl. flow rates and pipe sizes (4 to 8 inch).

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
Portuguese
Materials
Concrete, Other
Units
Metric
Area
1000 – 2499 m² (10763.9 – 26899.0 ft²)
Uploaded by
Mira Blocks
Category
Public Facilities, Water Sewage & Electricity Infrastructure
Published
Jun 16, 2026
Price $5.81
or

or get unlimited access from $7/mo

Tags

aeration tank DBFT diffuser DBGCM B&F 105 diffuser layout industrial water MEP Sanitation sewage plant tanque de aeração wastewater treatment water infrastructure water treatment plan
