Detail Armstrong Ceiling DWG Detail for AutoCAD

Detail Armstrong Ceiling DWG Detail for AutoCAD

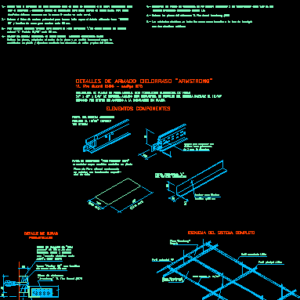

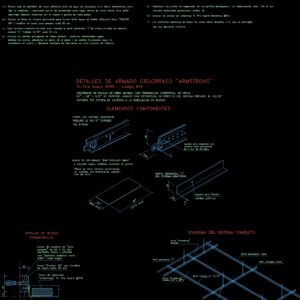

Details Armstrong collapsible ceiling with Prelude profile 15/16

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Rock, The crown, Ceilings details, Detail of buñas, Perimeters, Wood screw every cm., Of steel every cm, Ceiling tile, Vl fire guard, Prelude perimetral profile, Painted sandpaper, Mm, With synthetic mate, Black color, Wooden strip, Screwdrivers, Slopes should be marked at least points on each wall., Place the perimeter wood strip to form a detail according to the detail using tacos, Fix the ceiling with reference points and then join them in a straight line. to avoid, Level the entire perimeter of the premises using hose water level the height determined for, Prestressed galvanized gauge wire, Place the ceilings vl fire guard armstrong, The electrical devices in all cases will be taken the slab of concrete, Establish the points of suspension in the main profiles the transversal ones each with, Steel screws for wood every cm., Ceiling mount detail, Complete system schematic, Component elements, Fissured ceilings, Modular according to measures in plan, Fixing hole, Screws cm, Vinyl, In buckets with termination, Mineral shaped fiber board, Ceiling detail, Vl fire guard code, Arming with prelude xl system profile structure, Mineral fiber board ceilings with vinyl surface finish, Exposed tee system according to modulation in plan, Of armstrong system, Perimeter profile, Galvanized double wire, Hole to suspend with, Armstrong system profile, Prelude xl exposed, Tee system, Mm. diameter., license plate, cutout, Prestressed wire gauge concrete slab, Perimeter profile, Prelude xl profile, license plate, Secondary profile, Natural prelude every cm., Also fix with wood screws the perimeter profile painted sheet of the system, To place the main profiles of continuous painted sheet distanced according to, Modulation in plant fixing by means of the union elements of the system., Indicate the widths of the plate in the transverse direction according to the, With two minimum wires, Main profile, With nail hook, Clip-on wire

Raw text data extracted from CAD file:

ROCHA LA CORONILLA CIELORRASOS "ARMSTRONG" - DETALLES DETALLE DE BUÑAS PERIMETRALES Tornillo para madera cada 50 cm. 20 40 10 de acero cada 50 cm Placa de cielorraso "Armstrong" VL Fire Guard #870 Perfil "L" perimetral Prelude cepillada, lijada y pintada parana" de 20 x 40 mm con "esmalte sintetico mate ALBA", color negro Liston de madera de "pino Tacos "Fischer S6" con tornillos desniveles deberan marcarse por lo menos 3 puntos en cada pared. 2.- Colocar el liston de madera perimetral para formar buña segun el detalle utilizando tacos "FISCHER fijar el cielorraso , senalando puntos de referencias para luego unirlos en forma recta. Para evitar 1.- Nivelar todo el perimetro del local utilizando nivel de agua de manguera a la altura determinada para alambre pretensado galvanizado calibre 12. 6.- Colocar las placas del cielorraso VL Fire Guard Armstrong #870 7.- Los artefactos electricos en todos los casos seran tomados a la losa de hormigón 5.- Establecer los puntos de suspension en los perfiles principales y los transversales cada 1.20 m con S6" y tornillos de acero para madera cada 50 cm. DETALLE DE MONTAJE CIELORRASO "ARMSTRONG" ESQUEMA DEL SISTEMA COMPLETO ELEMENTOS COMPONENTES 1.2 25 25 PLACA DE CIELORRASO "FINE FISSURED RH90" a modular segun medidas acotadas en planta (609 mm) Agujero para fijacion tornillos c/50 cm 24" 48" (1219 mm) cial de vinilo en cubetas con terminacion superfi- Placa de fibra mineral conformada DETALLES DE ARMADO CIELORRASO "ARMSTRONG" VL Fire Guard RH90 - codigo 870 24" x 48" x 5/8" DE ESPESOR, ARMADO CON ESTRUCTURA DE PERFILES DEL SISTEMA PRELUDE XL 15/16" CIELORRASO DE PLACAS DE FIBRA MINERAL CON TERMINACION SUPERFICIAL DE VINILO EXPOSED TEE SYSTEM DE ACUERDO A LA MODULACION EN PLANTA DEL SISTEMA ARMSTRONG PERFIL PERIMETRAL "L" alambre doble galvanizado Agujero para suspender con PERFIL DEL SISTEMA ARMSTRONG PRELUDE XL 15/16" EXPOSED TEE SYSTEM 23,8 38 de 2 mm. de diametro. Placa "Armstrong" (entera 24" x 48") Recorte Alambre pretensado calibre 12 a losa de hormigon Perfil perimetral "L" Perfil Prelude XL 15/16" Placa "Armstrong" Perfil secundario 1.22m natural "L" Prelude 15/16" cada 50 cm. 3.- Fijar tambien mediante tornillos para madera el perfil perimetral "L"de chapa pintada del sistema 4.- Colocar los perfiles principales de chapa pintada continuos distanciados segun modulacion en planta y fijandose mediante los elementos de union propios del sistema. indican los planos, adaptados al ancho de la placa y en sentido transversal segun la con dos alambres mínimos Perfil principal 3.65m con clavo 1 1/4"con gancho #PCLDP112 Alambre regulado con clip #W112

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	abgehängten decken, autocad, ceiling, DETAIL, details, DWG, plafonds suspendus, profile, suspenden ceilings
