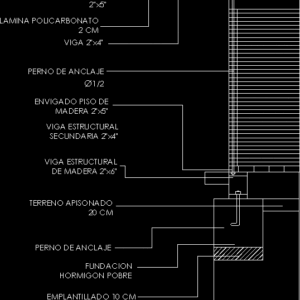

Detail foundation of wooden beam

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plaster cm concrete low dosage, poor concrete foundation, ground tamped cm, structural wooden beam, secondary structural beam, anchor bolt, wooden floor, anchor bolt, polycarbonate sheet cm, beam, bundled splinted

Raw text data extracted from CAD file:

\W2.68232; EMPLANTILLADO 10 \W2.68232; CM \W4.72994; HORMIGON BAJA \W7.11090; DOSIFICACION \W8.77756; FUNDACION \W3.30137; HORMIGON POBRE \W1.15851; TERRENO APISONADO \W6.00783; 20 CM \W2.68232; VIGA ESTRUCTURAL \W3.15851; DE MADERA 2"x6" \W2.68232; VIGA ESTRUCTURAL \W2.68232; SECUNDARIA 2"x4" \W1.82518; PERNO DE ANCLAJE \W2.58709; ENVIGADO PISO DE \W2.58709; MADERA 2"x5" \W1.82518; PERNO DE ANCLAJE \W7.32175; ø1/2 \W3.88646; LAMINA POLICARBONATO \W8.39561; 2 CM \W8.72994; VIGA 2"x4" \W4.02574; ENVIGADO ENTABLILLADO \W9.10811; 2"x5"

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, beam, DETAIL, détails de construction en bois, DWG, FOUNDATION, holz tür, holzbau details, Wood, wood construction details, wooden, wooden door, wooden house
