Detail Underground Tank DWG Full Project for AutoCAD

Detail Underground Tank DWG Full Project for AutoCAD

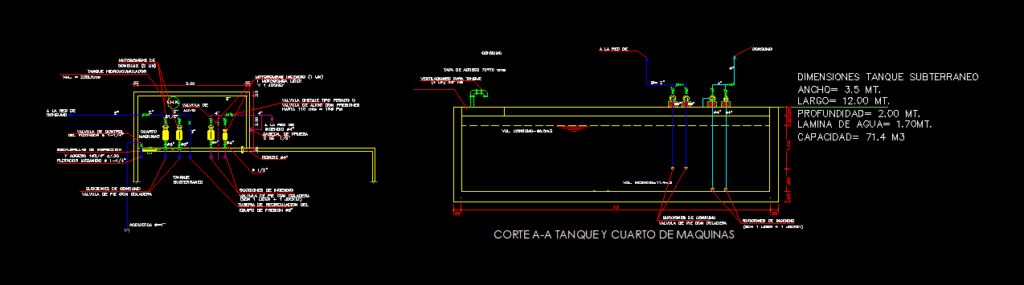

Contains details of machines; Pass; filling, recycling, washing, machines network fires projected volumes. Sectional view and plan.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

fire suctions, to the network of, ehn, consumption, motor pumps, hydroaccumulator tank, foot valve with strainer, consumption suctions, tank, room, machines, subway, inspection stairs, recirculation pipe, control valve, check valve type heavy or, pressure relief valve, relief valve, test head, tank vents, underground tank dimensions, tank cut and machine room

Raw text data extracted from CAD file:

\A1;.25 \A1;2.50 \A1;.25 \A1;.25 \A1;2.00 \A1;.25 \A1;.25 \A1;.30 \A1;.25 \A1;.25 \A1;.25 \A1;1.10 \A1;12 \A1;.60 SUCCIONES DE INCENDIO A LA RED DE d4" d 1/2" .25 2.50 .25 INCENDIO d4" .25 2.00 .25 E.H.N. d3" d3" A LA RED DE CONSUMO ACOMETIDA d=1" MOTOBOMBAS INCENDIO (1 UN) 1 MOTOBOMBA LIDER Y 1 JOCKEY MOTOBOMBAS DE TANQUE HIDROACUMULADOR VoL. = 200Litros FLOTADOR MECANICO d 1-1/4" VALVULA DE PIE CON COLADERA (SON 1 LIDER + 1 JOCKEY) SUCCIONES DE CONSUMO VALVULA DE PIE CON COLADERA TANQUE CUARTO MAQUINAS SUBTERRANEO CONSUMO (2 UN) 4" 21/2" 2" 2" ESCALERILLAS DE INSPECCION Y ACCESO 1d3/4" c/.30 2" 4" TUBERIA DE RECIRCULACION DEL EQUIPO DE PRESION d2" VALVULA DE CONTROL DEL FLOTADOR d 1-1/4" 2" REBOSE d4" VALVULA CHEQUE TIPO PESADO O VALVULA DE ALIVIO CON PRESIONES HASTA 110 mts = 158 Psi VALVULA DE ALIVIO d4" CABEZAL DE PRUEBA 2 DE 1/2" 2" .25 .60 1.10 .30 .25 d4" d4" 4" 4" d3" d3" Ø= 2" VOL. CONSUMO=60.0m3 VOL. INCENDIO=11.4m3 .25 .25 12 A LA RED DE CONSUMO SUCCIONES DE CONSUMO VALVULA DE PIE CON COLADERA SUCCIONES DE INCENDIO (SON 1 LIDER + 1 JOCKEY) TAPA DE ACCESO 70*70 cms (4 Un) d3" HG VENTILACIONES PARA TANQUE CONSUMO DIMENSIONES TANQUE SUBTERRANEO ANCHO= 3.5 MT. LARGO= 12.00 MT. LAMINA DE AGUA= 1.70MT. PROFUNDIDAD= 2.00 MT. CAPACIDAD= 71.4 M3 CORTE A-A TANQUE Y CUARTO DE MAQUINAS

Language	Spanish
Drawing Type	Full Project
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Imperial
Footprint Area
Building Features
Tags	à gaz, agua, autocad, DETAIL, details, DWG, fires, full, gas, híbrido, hybrid, hybrides, l'eau, machines, network, pass, Project, pumps, recycling, reservoir, tank, tanque, underground, washing, wasser, water
