Details Plumbing – Fire DWG Detail for AutoCAD

Details Plumbing – Fire DWG Detail for AutoCAD

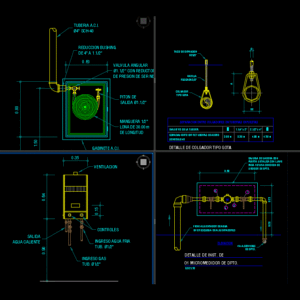

DROP TYPE HANGER DETAIL DET. OUTPUT VALVE. ANGLE ACI DET; CABINET FIRE DET; INST. WATER MICROMEDIDOR DET. GAS WATER HEATER DET. SUPPORT ANTI SEISMIC 4 WAY DET. SUPPORT ANTISISMICO 2 VIAS DET. SUPPORT TUB. ACI

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

toco, scale:, drop type hanger detail, diameter of the pipe, separation between hangers in exposed pipes, spacing between steel pipes, schedule, max., ceiling, support detail, anti-seismic, symbol, minimum, greater length var. in construction, detail of pipe support a.c.i., scale:, ceiling, support detail, anti-seismic, symbol, feb platinum sheet, painted with paint, anticorrosive, section, scale:, inspection window, sealing cisterns, scale:, detail, kind, fireproof cabinet, note: the cabinet will be made in metal plate of glass-size thick door hinge white in the interior red finish to the plate type push button self-adhesive with indications of use., angular a.c.i., valve outlet detail, scale:, detail, scale:, detail, ventilation, entrance cold water tub., gas tub., gas heater, sun gas, Ball Valve, supplements, Universal union, meter of, nomenclature, key, description, plant, micromedidor of dpto., inst. from, elevation

Raw text data extracted from CAD file:

\A1;Max. 3" \A1;0.60 \A1;0.80 \A1;0.80 \A1;0.15 \A1;0.50 \A1;0.50 \A1;MINIMO 0.30 \A1;0.90 \A1;0.70 \A1;0.70 \A1;0.25 \A1;0.90 \A1;0.45 \A1;1.50 \A1;0.90 \A1;0.64 \A1;0.35 \A1;0.25 \A1;0.20 \A1;D \A1;A \A1;DE TOLCO ESCALA: S/E DETALLE DE COLGADOR TIPO GOTA DIAMETRO DE LA TUBERIA SEPARACION ENTRE COLGADORES EN TUBERIAS EXPUESTAS 1" 3.00 m 1.1/4" a 2" 3.50 m 4.50 m 6" ESPACIAMIENTO ENTRE TUBERIAS DE ACERO SCHEDULE 40 2.1/2" a 4" 4.00 m D A DE Max. 3" TECHO DETALLE DE SOPORTE S/E ANTISISMICO DE 4 VIAS SIMBOLO MINIMO <> MAYOR LONGITUD VAR. EN OBRA DETALLE DE SOPORTE TUBERIA A.C.I. ESCALA: 1/5 TECHO DETALLE DE SOPORTE S/E ANTISISMICO DE 2 VIAS SIMBOLO 5 5 A 01 HOJA DE PLATINA DE Feº DE 3/8" PINTADA CON PINTURA ANTICORROSIVA 5 A SECCION ESCALA: 1/25 VENTANA DE INSPECCION A CISTERNAS DE CIERRE HERMETICO ESCALA: 1/25 1 DETALLE 5 5 5 TIPO "A" GABINETE CONTRA INCENDIO NOTA: EL GABINETE SE FABRICARÁ EN PLANCHA METALICA DE 1/20" DE ESPESOR, DE DIMENSIONES DE 0.90m x 0.70m x 0.25m, PUERTA DE VIDRIO DE ESPESOR SIMPLE, BISAGRA CONTINUA, COLOR BLANCO EN EL INTERIOR Y ACABADO EN COLOR ROJO AL HORNO, CHAPA TIPO PUSH BOTON Y AUTOADHESIVO CON INDICACIONES DE EMPLEO. ANGULAR A.C.I. d2.1/2" DETALLE DE SALIDA DE VALVULA 5 5 5 5 ESCALA: 1/25 2 DETALLE ESCALA: 1/10 3 DETALLE 5 5 5 5 VENTILACION \A1;CONTROLES INGRESO AGUA FRIA TUB. Ø1/2" \A1;INGRESO GAS TUB. Ø1/2" CALENTADOR A GAS SOL - GAS - 16 Lts/Min 1 VALVULA ESFERICA Ø1" 2 SUPLE DE 1" x 3" 3 UNION UNIVERSAL Ø1" 4 MEDIDOR DE Ø1" NOMENCLATURA CLAVE DESCRIPCION (MICROMEDIDOR) 1 2 3 4 PLANTA 5 5 5 5 01 MICROMEDIDOR DE DPTO. ESC:1/10 DETALLE DE INST. DE ELEVACION M 1 2 3 4

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, aci, angle, autocad, banhos, casa de banho, det, DETAIL, details, drop, DWG, fire, fosse septique, hanger, health, mictório, output, plumbing, sanitär, Sanitary, sewer, toilet, toilette, toilettes, type, urinal, urinoir, valve, wasser klosett, WC
