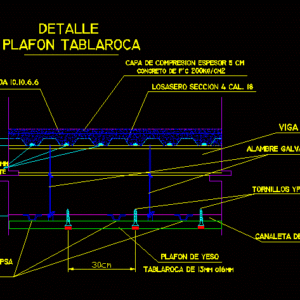

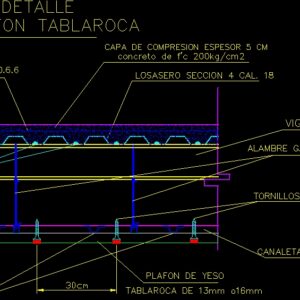

Detalle constructico de colocacion de plafon tabla – roca con malla electrosoldada; concreto de f?c kg/cm2; losasero seccion 4 cal. 18; y alambre galvanizado

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ypsa liston, welding points, self-tapping screws, compression layer thickness cm, concrete of f’c, plasterboard ceiling, load channel each max., welded Mesh, plafon tablaroca, loft section lime., detail, max., table cloth, galvanized wire num., ipr beam, screws and

Raw text data extracted from CAD file:

50cm 6.35cm CANELES LISTON YPSA puntos de soldadura de 20mm ó tornillos autotaladrante CAPA DE COMPRESION ESPESOR 5 CM concreto de f'c 200kg/cm2 PLAFON DE YESO CANALETA DE CARGA a cada 1.2m max. MALLA ELECTROSOLDADA 10.10.6.6 PLAFON TABLAROCA LOSASERO SECCION 4 CAL. 18 DETALLE @ 61cm max. TABLAROCA DE 13mm o16mm ALAMBRE GALVANIZADO Num. 12 VIGA IPR 24" X 12" 30cm TORNILLOS YPSA DE 26.4MM
