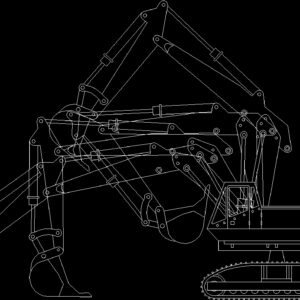

2D side-elevation CAD block of a tracked excavator for construction site planning and site sections. The drawing features superimposed linework illustrating the range of motion for the boom, arm, and bucket, showing specific working heights and reach extensions. Technical details include the track assembly, operator cab profile, hydraulic rams, and engine counterweight.
This block is used to verify vertical and horizontal clearances in site sections or to plan equipment placement for earthmoving projects. Escavadeira.
