Dimensions Of A Velodrome DWG Block for AutoCAD

Dimensions Of A Velodrome DWG Block for AutoCAD

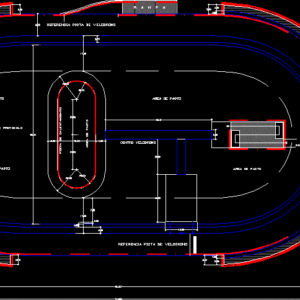

general dimensions of 250 m a velodrome, official measures ICU nomenclature for stroke.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

arq jesus palafox glez, local council of conciliation and arbitration, ground floor, mts., plaza cristal, north, ramp, tunel reference, velodrome track reference, goal, grass area, protocol area, velodrome center, warming track, they should be painted at the center of the track in both straight lines, perfectly aligned.

Raw text data extracted from CAD file:

Arq. Jesus Palafox Glez JUNTA LOCAL DE CONCILIACION Y ARBITRAJE PLANTA BAJA 0 ARQ-01 1 : 1 25 ENERO-05 MTS. - PLAZA CRISTAL 067-04 NORTE \A1;7.50 \A1;11.00 \A1;12.00 \A1;3.00 \A1;33.21 \A1;3.00 \A1;2.00 \A1;R9.00 \A1;R9.00 \A1;3.00 \A1;11.00 \A1;2.00 \A1;0.50 \A1;R6.00 \A1;R6.00 \A1;10.90 \A1;10.90 \A1;3.00 \A1;15.00 \A1;10.90 \A1;10.00 \A1;1.00 \A1;2.00 \A1;3.00 \A1;3.00 \A1;3.00 \A1;1.00 \A1;2.00 \A1;0.93 \A1;7.00 \A1;124.87 \A1;144.55 \A1;55.94 \A1;6.92 0.7 5 10 0.04 3.5 0.04 7 0.7 7 0.2 0.72 0.04 2.45 0.85 R A M P A REFERENCIA DE TUNEL REFERENCIA PISTA DE VELODROMO REFERENCIA PISTA DE VELODROMO M E T A 5 5 5 5 5 5 5 5 AREA DE PASTO AREA DE PROTOCOLO CENTRO VELODROMO 5 5 5 5 5 PISTA DE CALENTAMIENTO 5 5 5 5 5 5 AREA DE PASTO AREA DE PASTO AREA DE PASTO AREA DE PASTO 5 5 5 5 3.00 3.00 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Linea de Medicion (NEGRA) Linea de Sprinters (ROJA) Linea de Stayers (AZUL) Costa azul (Azul cielo) 5 5 10 Numeracion cada 10 metros Linea de Meta (NEGRA) Linea de Meta (FONDO BLANCO) 5 Linea de Persecusion (ROJA) Deben pintarse al centro de la pista en ambas rectas, perfectamente alineadas. 5 Deben pintarse 200 metros antes de la linea negra de la meta. Linea de 200 m (BLANCA) 5 TRAZO OFICIAL UCI VELODROMO OLIMPICO 250 m Todas las lineas longitudinales deben medir un ancho de 5 cm de ancho Todas las lineas transversales deben medir 4 cm de ancho La medida de la linea negra en el paño interior debe medir 250 m con una tolerancia de 1.2 cm Costa azul (Azul cielo) 5 5

Language	Spanish
Drawing Type	Block
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, basquetball, block, court, dimensions, DWG, feld, field, football, general, golf, Measures, nomenclature, official, sports center, stroke, voleyball
