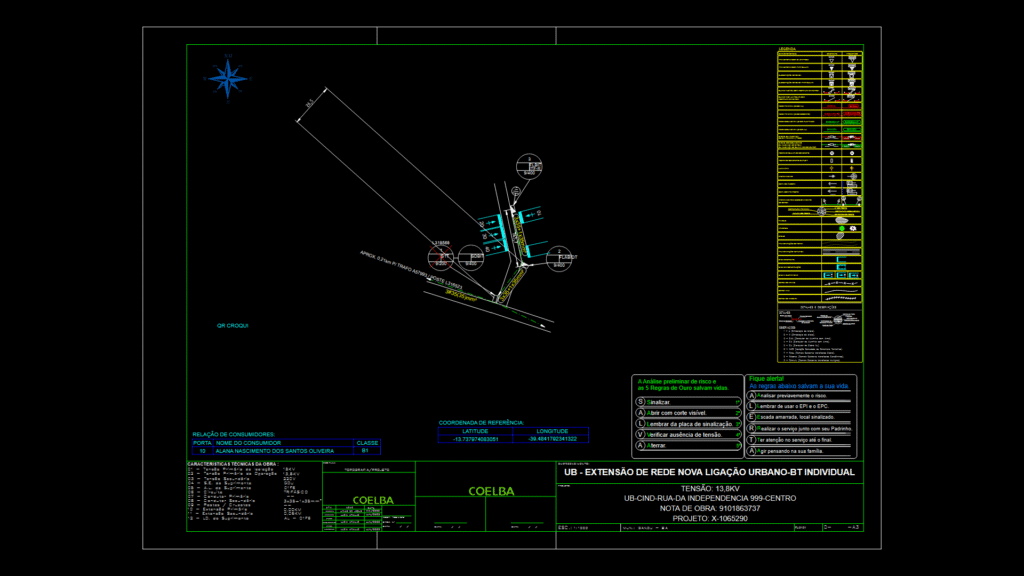

Urban power extension plan for new residential electrical connection in Gandu, Bahia, Brazil. The design shows a secondary electrical distribution line extension of 0.06km with a 13.8kV primary voltage system and 220V secondary voltage. Project includes multiplexed cables (3×35+1x35mm²) and specific connection details for customer Alana Nascimento dos Santos Oliveira. The drawing includes utility poles, electrical conductors, coordinates (latitude -13.737°, longitude -39.484°), safety instructions, and a comprehensive legend detailing electrical components. Notable specifications include:
Technical Characteristics:
– Primary voltage: 15kV insulation, 13.8kV operation
– Circuit: 01F6
– Supply substation: GDU
– Secondary voltage: 220V
– Primary extension: 0.00km
– Secondary extension: 0.06km
– Aluminum conductors: 3#35(35)mm²
The plan follows COELBA (Companhia de Eletricidade do Estado da Bahia) standards and includes safety protocols for installation crews regarding grounding, testing, and signaling procedures.
