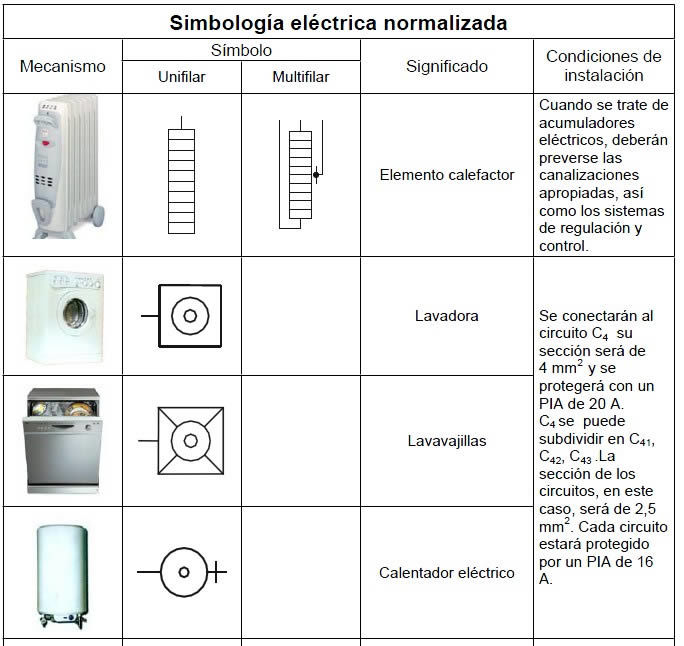

Standardized electrical symbols for household appliances and heating elements in PDF format. This reference includes both single-line (unifilar) and multi-line (multifilar) schematic representations for radiators, washing machines, dishwashers, and electric water heaters.
The chart details specific installation conditions, such as circuit designations like C4, wire gauge requirements in mm², and circuit breaker (PIA) ratings in Amperes. It is a technical guide for electrical layouts and wiring plans. Simbología eléctrica normalizada.
