Enlarged Fire Extinguisher Location Plan for Charlotte Convention Center

CAD floor plan of a convention center with red text labels indicating fire extinguisher locations throughout the facility.

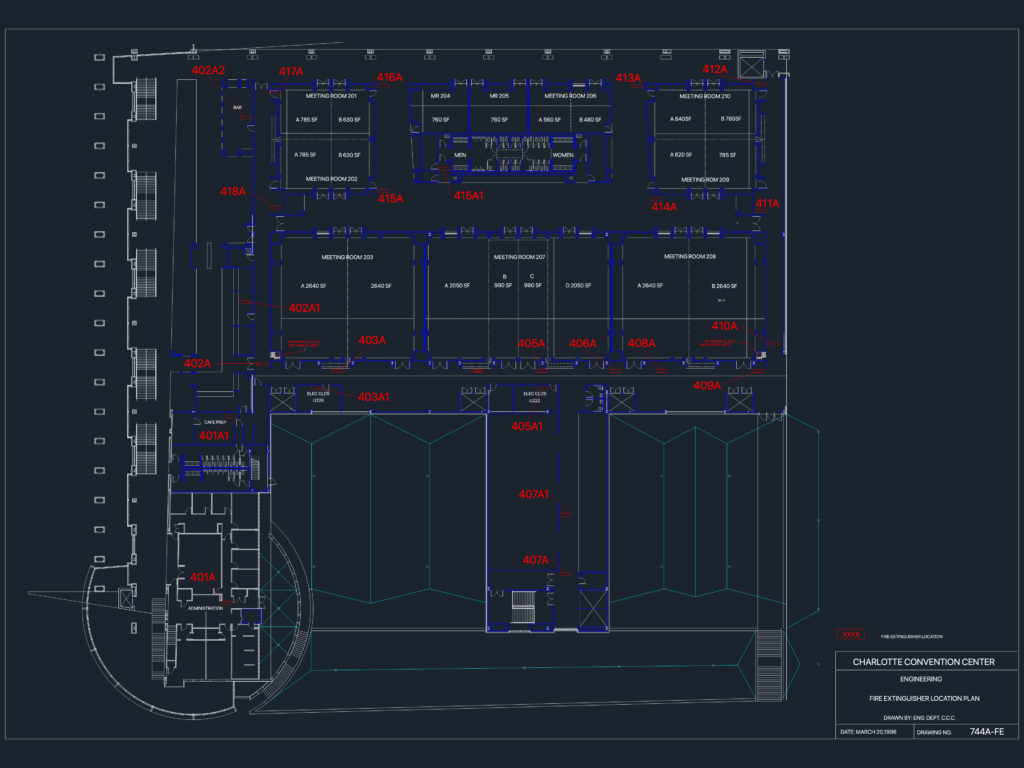

Enlarged floor plan for the Charlotte Convention Center showing fire safety equipment placement. Includes footprints for meeting rooms 201-210, admin offices, restrooms & cafe prep. Red callouts mark every extinguisher location.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Concrete, Masonry, Steel
Units
Imperial
Area
Over 5000 m² (53819.5 ft²)
Features
A/C
Uploaded by
CAD Workshop
Category
Commercial, Entertainment, Leisure & Sports
Published
May 16, 2026
Price $3.95
or

or get unlimited access from $7/mo

Tags

administration area assembly occupancy Building Services cafe prep Charlotte commercial layout CONVENTION CENTER emergency plan evacuation plan facility management fire extinguisher Fire Protection Fire Safety floor plan interior plan meeting room NC public building safety equipment safety map safety plan venue management
