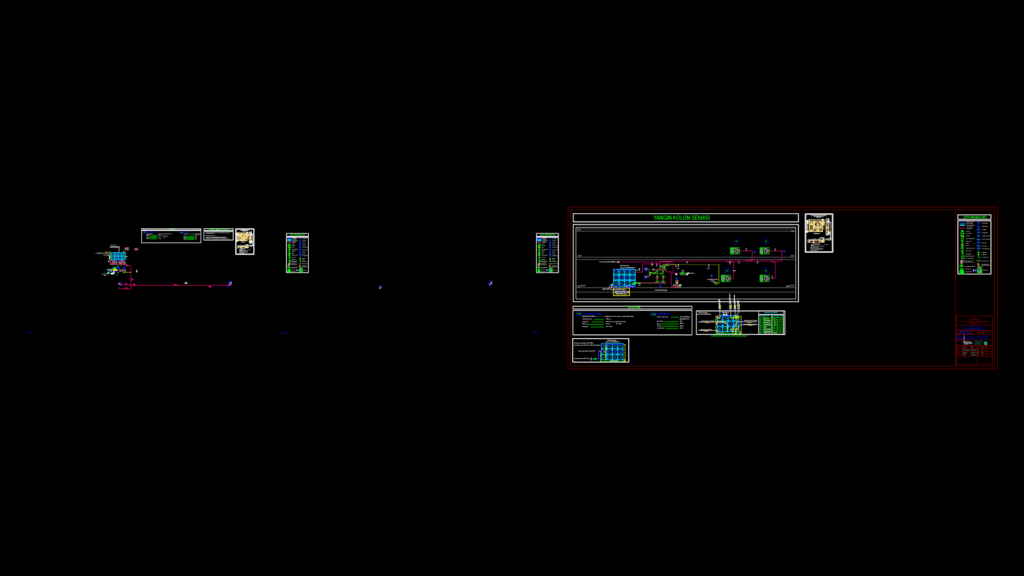

Detailed fire protection system drawings for an 8-classroom kindergarten building, featuring comprehensive system components and technical specifications. The plan includes:
Fire Protection Equipment:
– Fire pump group: 2 pumps (min. 1 generator-powered), 3.5 kW/each, 12 m³/h capacity, 59 mSS pressure
– 3-module GRP water tank with 22.8 m³ capacity (12 m³ designated for fire protection)
– Fire hose cabinets with 1″ diameter, 30m hoses
– Fire department connection (İ.B.A.) with 2×2½” connections
– 25 kg KKT portable fire extinguishers
Technical Details:
– Galvanized pipes for fire protection lines (HDPE for underground sections)
– Threaded connections for all pipe joints
– System includes pressure regulators, check valves, OS&Y valves, and monitoring equipment
– Compliance with NFPA 13 Section 9.3 for seismic protection
– Comprehensive schematic drawings showing distribution across ground floor, first floor, and roof
Drawing includes equipment schedules, installation details for fire cabinets, and water storage tank connection specifications with detailed flange configurations.
