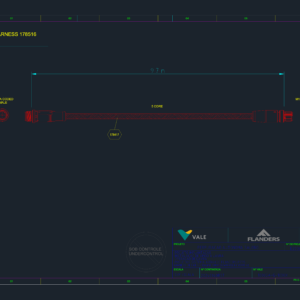

Flanders engine shutdown harness

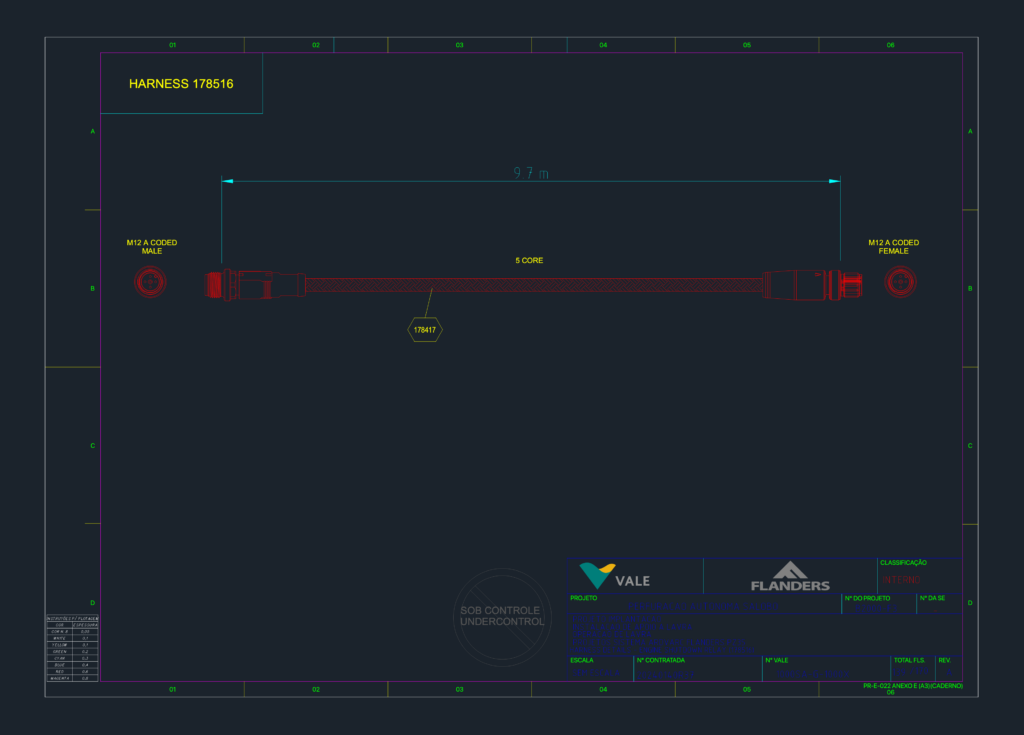

Technical CAD drawing of a 9.7m 5-core engine shutdown harness with M12 A-coded male and female connectors.

Engine shutdown relay harness details incl. M12 connectors & 5 core cable.

PREMIUM

File Details

File Type
DWG
Type
Detail
Language
Portuguese
Materials
Plastic, Steel
Units
Metric
Uploaded by
CAD Workshop
Category
Mechanical, Electrical & Plumbing (MEP)
Published
May 13, 2026
Price $8.33
or

or get unlimited access from $7/mo

Tags

5 core cable engine shutdown Flanders harness M12 connector relay Salobo Vale wiring
