Flanders operator chair left console cable assembly

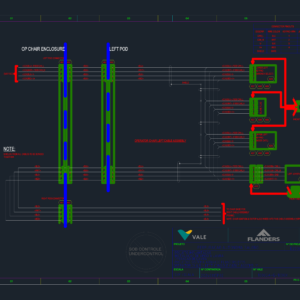

CAD wiring diagram of Flanders operator chair left console cable assembly with connector pinout tables.

Flanders operator chair left console cable assembly wiring diagram. includes connectr pinout tables for J1939 CAN bus (CAN_L, CAN_H) and power. Detail for upper/lower keypads and joystick connections for autonomous drilling units.
