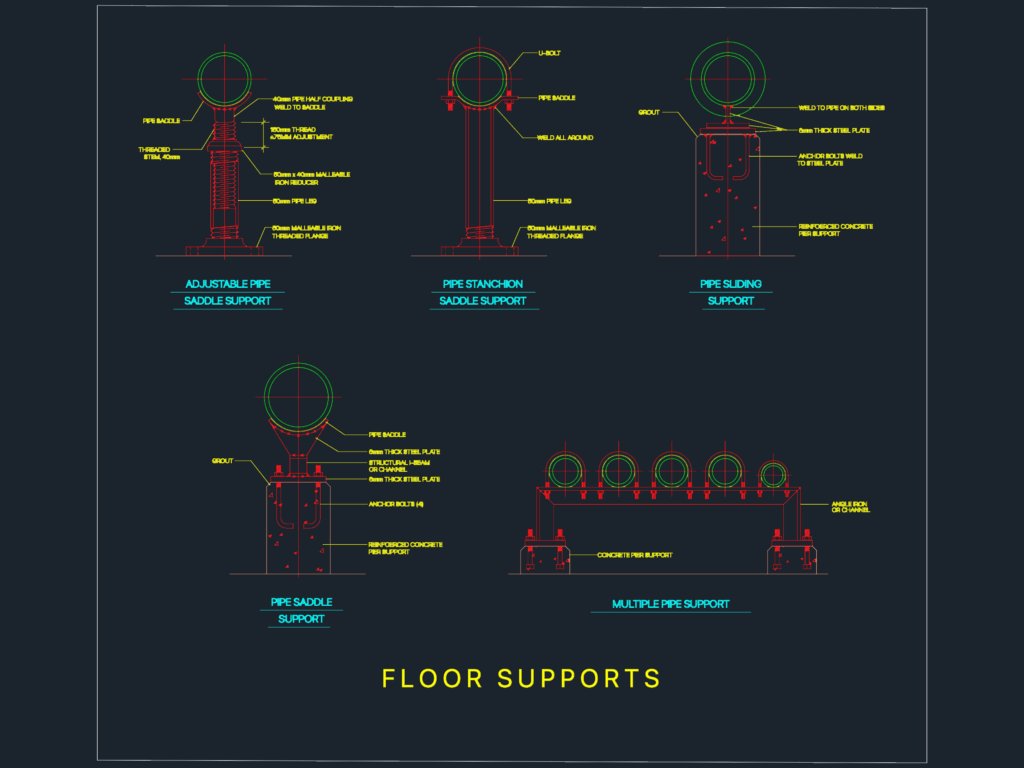

Floor support details for various industrial piping applications. Includes adjustable pipe saddle support with 40mm stem, 50mm malleable iron threaded flange and ±75mm adjustment range. Pipe stanchion saddle support features 50mm pipe leg and U-bolt assembly. Pipe sliding support and pipe saddle support options show reinforced concrete pier mounting with 6mm thk steel plates and grout. Multiple pipe support detail uses an angle iron or channel cross-member on dual concrete piers. Materials specified incl. malleable iron, reinforced concrete, and structural steel.All dims in mm.
Floor Pipe Supports
