Floors Covering System DWG Block for AutoCAD

Floor covering system for refrigeration camera working at 2 grades centigrades

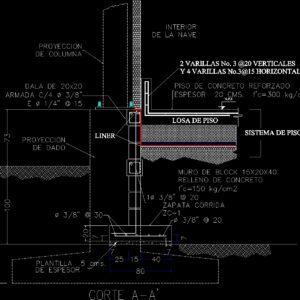

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

N.p.t., cut, Concrete block block wall, Projection of die, Column projection, Armed ward, Cms template, Interior of the ship, Running shoe, Reinforced concrete floor cms., of thickness, Floor system, Liner, Rods not. Vertical, Horizontal rods, Floor tile

Raw text data extracted from CAD file:

\A1;40 \A1;7 \A1;7 \A1;25 \A1;15 \A1;7 \A1;20 \A1;7 \A1;73 \A1;100 \A1;150 N.P.T. \A1;80 d 3/8" @ 20 5 CORTE A-A' 5 7 d 3/8" @ 30 <> 5 5 -1.0 5 1d 3/8" @ 20 MURO DE BLOCK 15X20X40 RELLENO DE CONCRETO f'c=150 kg/cm2 PROYECCION DE DADO PROYECCION DE COLUMNA DALA DE 20x20 ARMADA C/4 d 3/8" E d 1/4" @ 15 PLANTILLA 5 cms. -1.0 -1.0 -1.0 INTERIOR DE LA NAVE ZAPATA CORRIDA ZC-1 PISO DE CONCRETO REFORZADO ESPESOR 20 CMS. f'c=300 kg/cm² DE ESPESOR SISTEMA DE PISOS LINER 2 VARILLAS No. 3 @20 VERTICALES Y 4 VARILLAS No.3@15 HORIZONTALES LOSA DE PISO -1.0

Language	Spanish
Drawing Type	Block
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, camera, chambre froide, cold chamber, covering, DWG, floor, floors, geladeira, kältekammer, kühlschrank, réfrigérateur, refrigeration, refrigerator, system, working
