Geneva Driven Gear

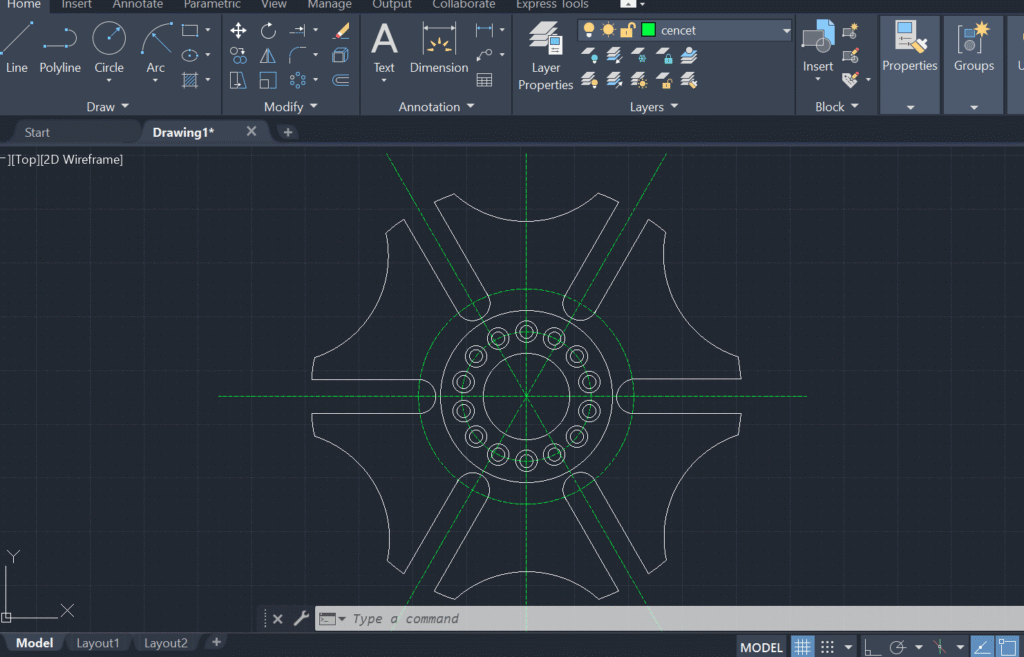

The Geneva drive or Maltese cross is a gear mechanism that translates a continuous rotation movement into intermittent rotary motion. This drawing about the driven gear Geneva mechanism.
The rotating drive wheel is usually equipped with a pin that reaches into a slot located in the other wheel (driven wheel) that advances it by one step at a time. The drive wheel also has an elevated circular blocking disc that “locks” the rotating driven wheel in position between steps.
Language | English |
Drawing Type | Block |
Category | Industrial |

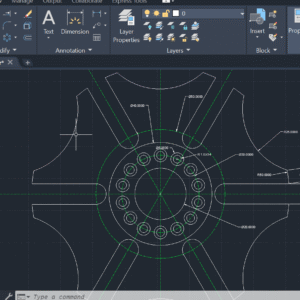

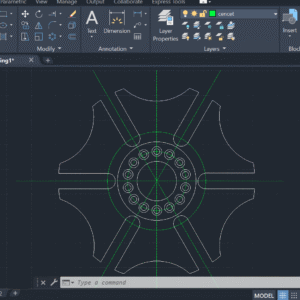

Additional Screenshots |
![]() |
File Type | dwg |
Materials | Aluminum, Plastic, Steel, Wood |
Measurement Units | Metric |
Footprint Area | N/A |
Building Features | |
Tags | driven gear, gear, gear mechanism, Geneva drive, mechanical, model, part, rotating, Wheel |
