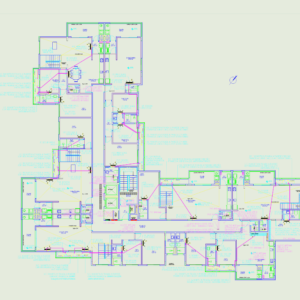

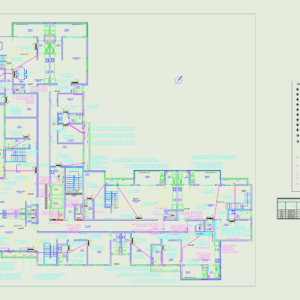

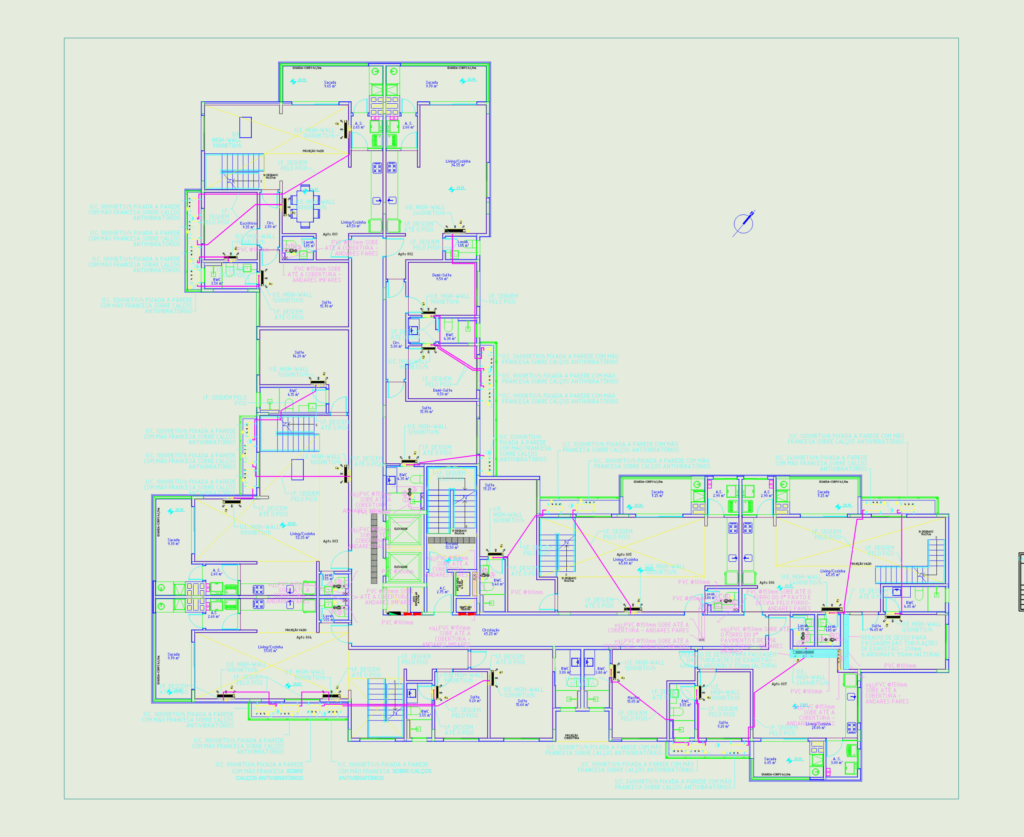

HVAC layout for the 8th floor of the Globo Residence residential tower, covering units 801 through 807. floor plan for high-wall evaporator and condenser placement (9k-24k BTU/h), drainage points, and exhaust ducting. Technical tables for refrigeration lines and insulation thicknesses are provided alongside full symbols legend. Projeto de climatização para o 8º pavimento do Residencial Globo.
Globo Residence 8th Floor HVAC Layout
