Green Wall DWG Section for AutoCAD

Green Wall DWG Section for AutoCAD

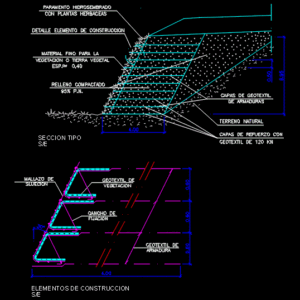

Section type and plant construction wall elements

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

waterproofing, with herbaceous plants, detail element of construction, fine material for the, vegetation, esp., compacted fill, p.n., layers of geotextile, of armor, natural terrain, mesh of, geotextile of, vegetation, hook of, fixation, geotextile of, armor, building elements, section, subjection, layers of reinforcement with, kn geotextile, tmb. ditch for pvc pipe, description:, dimensions:, green, walls, no order, basagoiti etor. getxo bizkaia t: f.

Raw text data extracted from CAD file:

\A1;4.00 \A1;6.95 \A1;0.50 \A1;0.60 \A1;0.60 \A1;0.60 \A1;4.00 \A1;30º PARAMENTO HIDROSEMBRADO CON PLANTAS HERBACEAS DETALLE ELEMENTO DE CONSTRUCCION MATERIAL FINO PARA LA VEGETACION O TIERRA VEGETAL ESP. 0,40 RELLENO COMPACTADO 95% P.N. CAPAS DE GEOTEXTIL DE ARMADURAS TERRENO NATURAL MALLAZO DE GEOTEXTIL DE VEGETACION GANCHO DE FIJACION GEOTEXTIL DE ARMADURA ELEMENTOS DE CONSTRUCCION SECCION TIPO SUJECION CAPAS DE REFUERZO CON GEOTEXTIL DE 120 KN S/E S/E 4.00 6.95 0.50 0.60 0.60 0.60 4.00 30º TMB. Zanja para 1 Tubo PVC d110 Descripción: -- Dimensiones: 0.95 x 0.45m verde muros d nº orden 14 01 01 estudiok@estudiok.es basagoiti etor. 69 1º · 48991 getxo bizkaia t: 944911332 / 2414 · f. 944912050 u r b a n i s m o · i n g e n i e r i a d e c a m i n o s · a r q u i t e c t u r a
