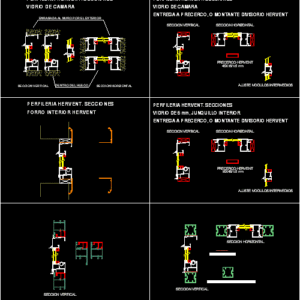

Technical sections for Hervent aluminum window and door profiles by Gravent. This drawing includes vertical and horizontal sections for various glazing configurations, including double-glazed camera glass and single glass thicknesses of 4mm and 6mm with interior or exterior beading (junquillo).

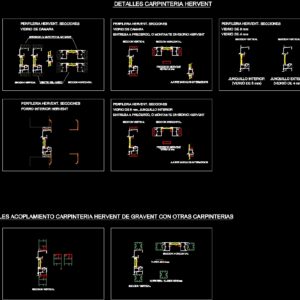

The file features detailed mounting arrangements such as profiles flush to the exterior wall or positioned within the wall opening. It contains specific components like Hervent pre-frames (precerco) in 45x15mm and 16x46mm sizes, interior lining details (forro interior), and coupling sections for connecting Hervent systems with standard 42x42mm aluminum carpentry. Profiles are shown with 46×1.5mm plates and intermediate module adjustments. Detalles de carpintería Hervent.
